Inconel 625 Round Bar as a High-Performance Alloy Choice

In this detailed guide, we’ll explore why Inconel 625 is considered a high-performance alloy choice, highlighting its mechanical properties, chemical composition, hardness, ASTM standards, heat treatment, and common industrial uses.

Inconel 625 is a high-performance nickel-based alloy known for its exceptional strength, superior resistance to corrosion, and reliability in harsh operating conditions. It’s applications range from aerospace and chemical processing to nuclear reactors and marine engineering. Among its many forms, the Inconel 625 round bar stands out for its versatility and structural performance in critical load-bearing applications.

What Is Inconel 625?

Inconel 625 is a high-performance nickel alloy, specifically a nickel-chromium-molybdenum alloy with the UNS designation N06625. This incredible alloy was developed to provide excellent corrosion resistance and strength without the need for precipitation hardening treatments, making it ideal for applications exposed to extreme stress and high temperatures.

Chemical Composition of Inconel 625

The exceptional performance of Inconel 625 is driven by its precise chemical composition and excellent corrosion resistance.

Element	Percentage (%)
Nickel (Ni)	58.0 min
Chromium (Cr)	20.0 – 23.0
Molybdenum (Mo)	8.0 – 10.0
Niobium + Tantalum	3.15 – 4.15
Iron (Fe)	≤ 5.0
Carbon (C)	≤ 0.10
Manganese (Mn)	≤ 0.50
Silicon (Si)	≤ 0.50
Phosphorus (P)	≤ 0.015
Sulfur (S)	≤ 0.015

Mechanical Properties of Inconel 625 Round Bar

Property	Value
Tensile Strength	827 MPa (min)
Yield Strength (0.2% offset)	414 MPa (min)
Elongation	30%
Hardness (Rockwell B)	92
Density	8.44 g/cm³
Melting Point	1290–1350°C

These properties make Inconel 625 round bars highly desirable in corrosive environments and high-temperature applications.

Inconel 625 ASTM Standard

The most commonly referenced standards for Inconel 625 materials are:

Product Form	ASTM Standard
Round Bars	ASTM B446
Plates & Sheets	ASTM B443
Forgings & Flanges	ASTM B564
Pipes & Tubes	ASTM B444, B705
Welding Wires	AWS A5.14/ERNiCrMo-3

The ASTM B446 standard specifies requirements for Inconel 625 round bars used in pressure vessels and structural applications.

Inconel 625 Heat Treatment Process

Unlike many nickel alloys, Inconel 625 derives its strength from solid solution strengthening, providing excellent corrosion resistance without the need for precipitation hardening.

Common Heat Treatments:

Annealing: Performed at 1038–1150°C, followed by rapid cooling.
Stress Relief: Typically done at 870–900°C for 1–2 hours.

Proper heat treatment improves resistance to stress corrosion, enhances fatigue life, and ensures dimensional stability under high temperatures.

Inconel 625 Product Forms

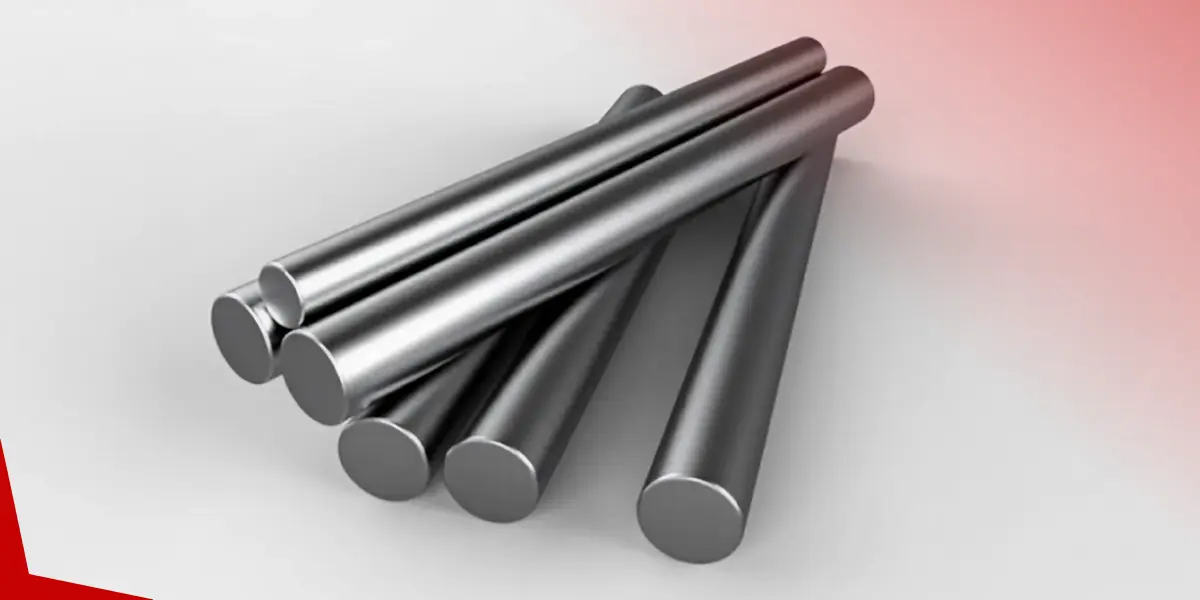

Inconel 625 Round Bar

Use Cases: Valve shafts, heat exchangers, nuclear reactor components, high-pressure flanges.
Benefits: High strength, dimensional accuracy, excellent fatigue resistance.

Inconel 625 Flanges

Used In: Oil & gas piping systems, marine applications, aerospace exhausts.
Features: Leak-proof, withstands thermal stress, non-corrosive in chloride-rich environments.

Inconel 625 Fasteners

Applications: Offshore platforms, heat-treating fixtures, aircraft engines.
Advantages: Withstand chemical exposure and mechanical vibration over long periods.

Industrial Applications of Inconel 625

Industry	Application
Aerospace	Jet engine exhaust, turbine blades, rocket propulsion
Oil & Gas	Risers, manifolds, wellhead components, seawater systems
Chemical Processing	Heat exchangers, reactor vessels, scrubbers
Marine	Submarine hulls, seawater piping, propeller shafts
Power Generation	Superheater tubes, steam lines, furnace parts

Its excellent corrosion resistance to oxidation, carburization, and chloride pitting makes it the preferred nickel alloy in harsh operational conditions.

Why Choose Inconel 625 Round Bar?

High Strength at Elevated Temperatures

Ideal for high-pressure, high-temperature environments like jet turbines and nuclear reactors, nickel alloys provide excellent corrosion resistance.

Excellent Corrosion & Oxidation Resistance

Maintains structural integrity in seawater, acids, and oxidizers with excellent corrosion resistance.

Weldability & Fabrication

Can be welded using GTAW, SMAW, and MIG without post-weld heat treatment, making it ideal for high strength nickel alloy applications.

Long Service Life

Lowers maintenance costs due to exceptional corrosion resistance and wear resistance.

Looking for Inconel 625 Round Bar Supplier?

Whether you need Inconel 625 round bars, flanges, or fasteners, choosing the right supplier is key. Work with an Inconel 625 manufacturer or stockist that ensures:

Compliance with ASTM B446
Provides Material Test Certificates (MTCs)
Offers cut-to-size services and bulk ordering options

Inconel 625 round bar remains a high-performance alloy of choice across industries requiring resistance to heat, pressure, and corrosion. With its robust mechanical properties, excellent weldability, and long-lasting durability, it serves as a critical component in modern engineering and manufacturing.

Whether you’re building infrastructure for aerospace, designing for deep-sea conditions, or developing chemical process equipment, Inconel 625 delivers performance you can count on—even under the harshest environments.

Need help sourcing high-quality Inconel 625 materials?

FAQ

What makes Inconel 625 different from other Inconel alloys?

Inconel 625, known for its excellent corrosion resistance and high tensile strength, offers superior oxidation resistance and does not require precipitation hardening, making it easier to fabricate and weld than Inconel 718 or 600.

What is the melting point of Inconel 625?

Inconel 625, with its excellent corrosion resistance, melts at 1290°C to 1350°C, making it suitable for high-temperature applications.

Can Inconel 625 be used in marine applications?

Yes, it’s one of the most corrosion-resistant nickel alloys available, especially in seawater environments.

What is the ASTM standard for Inconel 625 round bar?

The applicable ASTM standard is ASTM B446, which outlines the specifications for round bars and rods made from nickel-chromium-molybdenum alloys.
