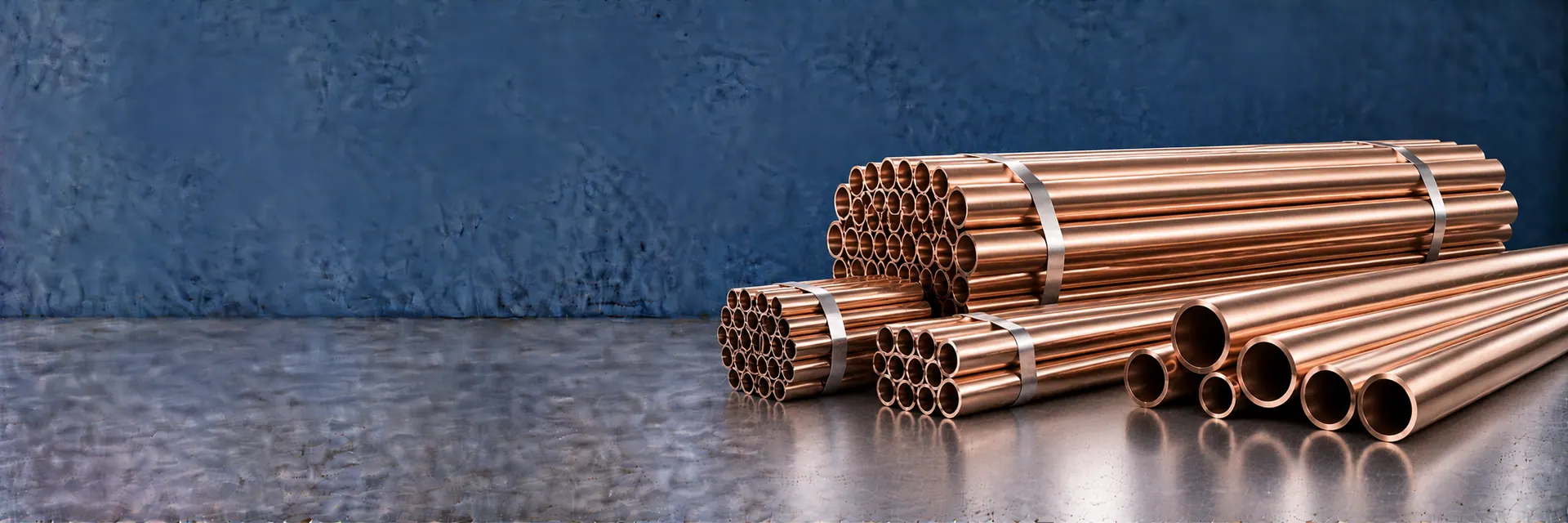

Cupro Nickel Condenser Tube
Stockist, importer and exporter of cupro nickel condenser tube in Mumbai, India — Condenser Tube: Ø 6 – 76 mm, produced to ASTM B111 / B543, with EN 10204 3.1 / 3.2 certification and export to 40+ countries.
What is Cupro Nickel Condenser Tube?
Cupro Nickel Condenser Tube is cupro nickel supplied in condenser tube form — condenser tube is a thin-wall heat-exchanger tube supplied in straight or U-bent form, used in surface condensers, coolers, evaporators and desalination plant where seawater or steam is on one side. Steelco Metal & Alloys stocks cupro nickel condenser tube in Mumbai, India in Condenser Tube: Ø 6 – 76 mm, produced to ASTM B111 / B543, in grades including Cupro Nickel 90/10, Cupro Nickel 70/30, Copper Nickel C71640. Every dispatch carries an EN 10204 3.1 mill test certificate (3.2 with third-party witness on request), PMI verification and heat-number traceability, and we export to more than 40 countries.
All grades we stock in cupro nickel condenser tube.
Click any grade for its full chemical composition, mechanical properties, equivalents and typical applications. Every grade ships with EN 10204 3.1 / 3.2 certification from our Mumbai stockyard.
Why Choose Cupro Nickel Condenser Tube
Dimensional accuracy
Condenser tube is supplied within ASTM wall-thickness and ovality limits, with ends square-cut or bevelled to ASME B16.25 for site welding.
Tested and documented
Hydrostatic or eddy-current testing, intergranular corrosion testing and radiography on request, with results attached to the certificate.
Matched fittings
Buttweld fittings, flanges and gaskets from the same heat wherever possible, so the whole spool carries one traceable chemistry.
Technical Specifications
| Attribute | Details |
|---|---|
| Product | Cupro Nickel Condenser Tube |
| Size range | Condenser Tube: Ø 6 – 76 mm |
| Thickness / wall | 0.7 – 3 mm |
| Finish / condition | Annealed, light drawn |
| Standards | ASTM B111 / B543 |
| Grades stocked | Cupro Nickel 90/10, Cupro Nickel 70/30, Copper Nickel C71640 |
| Certification | EN 10204 3.1 as standard, 3.2 with TÜV / SGS / BV / Lloyd's / IRS witness on request |
| Origin | Mill-direct from approved Indian, European, Japanese and Korean producers |
| Dispatch | Ex-stock Mumbai, India; export via Nhava Sheva (JNPT), Mundra and Mumbai ports |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Grade chemistry and mechanical properties supplied in cupro nickel condenser tube.
Chemical composition and mechanical properties are grade properties, not form properties — the same grade keeps the same chemistry whether it is supplied as sheet, plate or coil. The tables below list the specified limits for each grade we stock in cupro nickel condenser tube, tested and certified to ASTM B111 / B543. Values are weight percent (maximum unless a range is shown); mechanical values are minima in the annealed condition.
Chemical composition (weight %)
| Grade | Cu | Ni | Fe | Mn | Zn | Pb |
|---|---|---|---|---|---|---|
| Cupro Nickel 90/10UNS C70600 | Balance | 9.0–11.0 | 1.0–1.8 | 0.5–1.0 | 0.5 | 0.02 |
| Cupro Nickel 70/30UNS C71500 | Balance | 29.0–33.0 | 0.4–1.0 | 1.0 | 0.5 | 0.02 |
| Copper Nickel C71640UNS C71640 | Balance | 15.0–18.0 | 1.7–2.3 | 1.5–2.5 | 0.5 | 0.05 |
Balance iron. Single figures are maximum limits. Mill test certificates to EN 10204 3.1 are issued with every dispatch.
Mechanical properties (annealed, minimum)
| Grade | Tensile Strength (min) | Yield Strength (0.2%) | Elongation | Hardness |
|---|---|---|---|---|
| Cupro Nickel 90/10 | 275 MPa (40 ksi) | 105 MPa min | 30% min | 70 – 90 HV annealed |
| Cupro Nickel 70/30 | 372 MPa (54 ksi) | 138 MPa min | 30% min | 90 – 110 HV annealed |
| Copper Nickel C71640 | 345 MPa (50 ksi) | 125 MPa min | 30% min | 80 – 100 HV annealed |
Typical annealed values; actual results are stated on the heat-specific mill test certificate.
Application Sectors
Shipbuilding
Seawater cooling, ballast, bilge and firewater piping in 90/10.
Power Plants
Surface condenser and auxiliary cooler tubing in 70/30.
Desalination
Brine heater and heat recovery tubing resistant to erosion-corrosion.
Offshore Platforms
Firewater ring mains, seawater lift and splash-zone piping.
Oil & Gas
Coolers, condensers and utility seawater systems.
Marine Fabrication
Tube sheets, baffles and heat-exchanger internals.
Cut, finished and certified to your drawing.
Material leaves our Mumbai facility finished to your specification — not as raw stock.
Why buy from Steelco.
Steelco Metal & Alloys is a Mumbai-based stockist, importer and exporter of stainless steel and nickel alloys, shipping certified material worldwide.
Quality & testing on every dispatch
- EN 10204 3.1 mill test certificate on every dispatch
- 3.2 certification with TÜV / SGS / BV / Lloyd's / IRS / IBR witness on request
- Positive Material Identification (PMI) with portable XRF / OES
- Dye-penetrant (DPT), ultrasonic (UT) and hydro testing on request
- NACE MR0175 / ISO 15156 compliance for sour service
- PED 2014/68/EU compliance for pressure equipment
- Heat-number stencilling and marking for full traceability
Deep ready stock
Ready stock of cupro nickel condenser tube in 3 grades at our Mumbai warehouse, so standard sizes ship the same week rather than waiting on a mill rolling programme.
Mill-direct sourcing
Approved supply from Jindal, JSL, Outokumpu, Aperam, Acerinox, Sandvik and leading Japanese and Korean mills — every item traceable to a named producer.
Full certification
EN 10204 3.1 mill test certificate as standard, 3.2 with TÜV, SGS, BV, Lloyd's, IRS or IBR witness, plus PMI, DPT and UT reports on request.
On-time worldwide delivery
Regular export shipments to the GCC, Africa, Southeast Asia, Europe, Latin America and the USA via Nhava Sheva (JNPT), Mundra and Mumbai ports.
How your material is packed and shipped.
Every consignment leaves our Mumbai facility protected for transit and documented for customs, whether it moves by road within India or by sea to an overseas port.
Domestic & export packing
- Wooden crates, pallets or steel bundles depending on section and weight
- Plastic caps, PVC film and VCI paper to protect surfaces and ends in transit
- Heat number and grade stencilled on every piece or bundle tag
- Seaworthy ISPM-15 treated packing for export consignments
Global shipments
- HS Code: 7411 / 8108
- FOB / CFR / CIF terms via Nhava Sheva (JNPT), Mundra and Mumbai ports
- Documentation: commercial invoice, packing list, MTC, bill of lading, COO, insurance
- Regular exports to the GCC, Africa, Southeast Asia, Europe, Latin America and the USA
Ready to price your requirement?
Share grade, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
Frequently asked questions.
Answers to the questions our Mumbai desk is asked most often.
What is cupro nickel condenser tube?
+
Cupro Nickel Condenser Tube is condenser tube is a thin-wall heat-exchanger tube supplied in straight or U-bent form, used in surface condensers, coolers, evaporators and desalination plant where seawater or steam is on one side, produced in cupro nickel to ASTM B111 / B543. Steelco stocks it in Mumbai in Condenser Tube: Ø 6 – 76 mm across grades such as Cupro Nickel 90/10, Cupro Nickel 70/30, Copper Nickel C71640.
Which grades of condenser tube do you stock?
+
We hold 3 grades in ready stock: Cupro Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500), Copper Nickel C71640 (C71640). Other grades are rolled or forged to order against a mill programme.
What sizes of cupro nickel condenser tube are available?
+
Stock covers Condenser Tube: Ø 6 – 76 mm, with thickness or wall from 0.7 – 3 mm in annealed, light drawn condition. Non-standard sizes are cut, machined or mill-rolled to your requirement.
What is the price of cupro nickel condenser tube in India?
+
Price is quoted per kilogram and moves with the alloy surcharge, the grade and the size. Send the grade, size, quantity and certification you need and our Mumbai desk replies the same working day with price, stock position and lead time.
Do you supply condenser tube with test certificates?
+
Yes. Every consignment ships with an EN 10204 3.1 mill test certificate showing chemistry and mechanical results against ASTM B111 / B543. EN 10204 3.2 certification witnessed by TÜV, SGS, BV, Lloyd's, IRS or IBR is arranged on request, along with PMI, dye-penetrant and ultrasonic reports.
