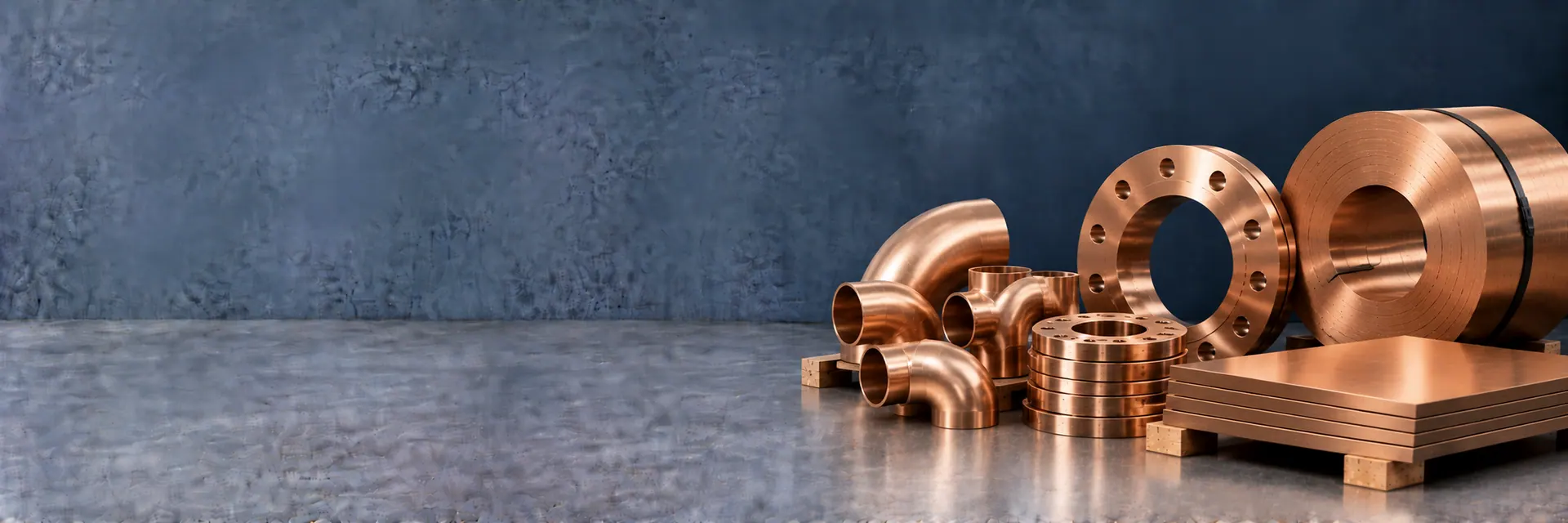

Cupro Nickel 70/30
Cupro nickel 70/30 (UNS C71500) tube, pipe, plate, bar and fittings for high-velocity seawater duty. Mumbai stockist and exporter, 3.1 MTC, exported worldwide.
About Cupro Nickel 70/30
Cupro nickel 70/30 (UNS C71500) tube, pipe, plate, bar and fittings for high-velocity seawater duty. Mumbai stockist and exporter, 3.1 MTC, exported worldwide.
Cupro nickel 70/30 (UNS C71500) contains about 30% nickel, giving higher strength and greater tolerance of high-velocity, sand-bearing and polluted seawater than 90/10. It is specified for condenser and heat-exchanger tubing, hydraulic lines and offshore piping where erosion-corrosion resistance above 3.5 m/s is required.
Steelco Metal & Alloys stocks Cupro Nickel 70/30 (UNS C71500) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Cupro Nickel 70/30
Available Forms
- Pipe
- Tube
- Plate
- Sheet
- Round Bar
- Flanges
- Buttweld Fittings
- Forged Fittings
Size Range
- Tube Ø 6 – 159 mm
- Pipe 1/2" – 24" NB
- Plate 3 – 50 mm
- Bar Ø 6 – 200 mm
Chemical composition of Cupro Nickel 70/30 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Cu | Ni | Fe | Mn | Zn | Pb |
|---|---|---|---|---|---|
| ≤ Balance | 29.0–33.0 | 0.4–1.0 | ≤ 1.0 | ≤ 0.5 | ≤ 0.02 |
| max | range | range | max | max | max |
Mechanical properties of Cupro Nickel 70/30 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 372 MPa (54 ksi) |
| Yield Strength (0.2%) | 138 MPa min |
| Elongation | 30% min |
| Hardness | 90 – 110 HV annealed |
Cupro Nickel 70/30 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B111 / B466 / B171 / B151 · UNS C71500 |
| EN / DIN | EN CW354H (CuNi30Mn1Fe) |
| JIS | JIS H3300 C7150 |
| UNS | UNS C71500 |
| Density | 8.95 g/cm³ |
| Size Range | Tube Ø 6 – 159 mm · Pipe 1/2" – 24" NB · Plate 3 – 50 mm · Bar Ø 6 – 200 mm |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Cupro Nickel 70/30
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
Other grades you may also need
Ready to price your requirement?
Share your grade, form, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
