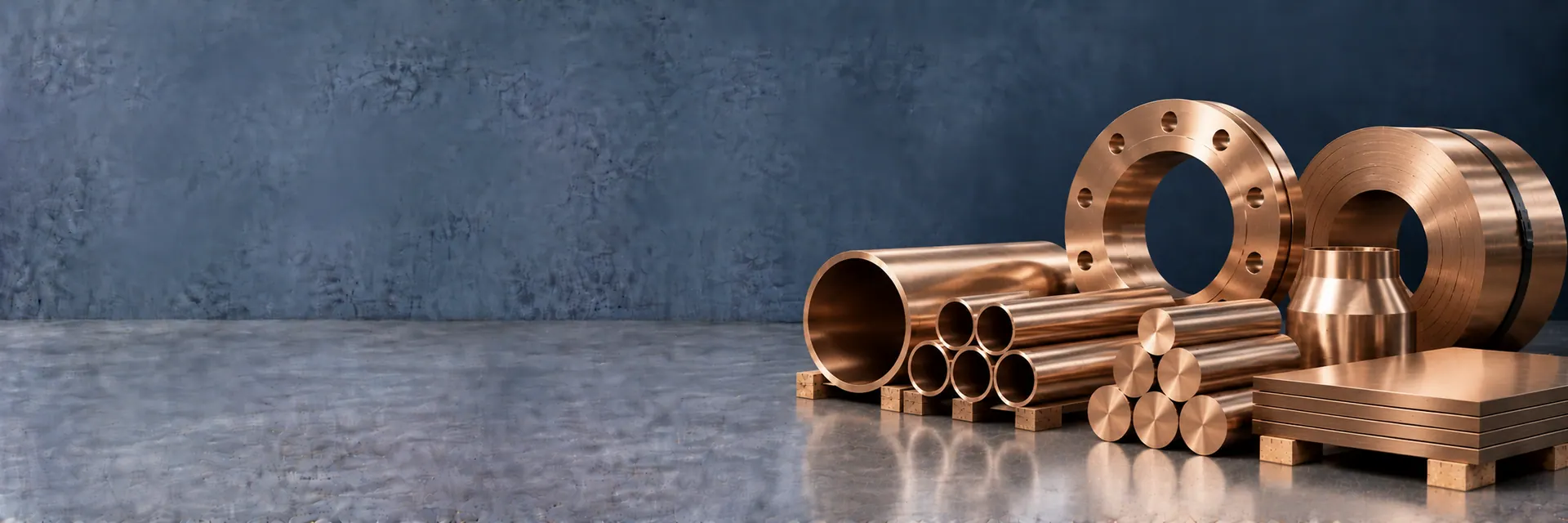

Cupro Nickel 90/10
Cupro nickel 90/10 (UNS C70600) tube, pipe 1/2"–24" NB, plate, bar and fittings for seawater service. Mumbai stockist and exporter, 3.1 MTC, 40+ countries.
About Cupro Nickel 90/10
Cupro nickel 90/10 (UNS C70600) tube, pipe 1/2"–24" NB, plate, bar and fittings for seawater service. Mumbai stockist and exporter, 3.1 MTC, 40+ countries.
Cupro nickel 90/10 (UNS C70600) contains roughly 10% nickel with 1.0–1.8% iron and up to 1% manganese, and is the workhorse alloy for seawater piping. It resists chloride pitting, biofouling and stress-corrosion cracking, and performs best at flow velocities between 1 and 3.5 m/s where a protective cuprous-oxide film stays intact.
Steelco Metal & Alloys stocks Cupro Nickel 90/10 (UNS C70600) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Cupro Nickel 90/10
Available Forms
- Pipe
- Tube
- Plate
- Sheet
- Round Bar
- Flanges
- Buttweld Fittings
- Forged Fittings
Size Range
- Tube Ø 6 – 159 mm
- Pipe 1/2" – 24" NB
- Plate 3 – 50 mm
- Bar Ø 6 – 200 mm
Chemical composition of Cupro Nickel 90/10 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Cu | Ni | Fe | Mn | Zn | Pb |
|---|---|---|---|---|---|
| ≤ Balance | 9.0–11.0 | 1.0–1.8 | 0.5–1.0 | ≤ 0.5 | ≤ 0.02 |
| max | range | range | range | max | max |
Mechanical properties of Cupro Nickel 90/10 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 275 MPa (40 ksi) |
| Yield Strength (0.2%) | 105 MPa min |
| Elongation | 30% min |
| Hardness | 70 – 90 HV annealed |
Cupro Nickel 90/10 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B111 / B466 / B171 / B151 · UNS C70600 |
| EN / DIN | EN CW352H (CuNi10Fe1Mn) |
| JIS | JIS H3300 C7060 |
| UNS | UNS C70600 |
| Density | 8.94 g/cm³ |
| Size Range | Tube Ø 6 – 159 mm · Pipe 1/2" – 24" NB · Plate 3 – 50 mm · Bar Ø 6 – 200 mm |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Cupro Nickel 90/10
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
Other grades you may also need
Ready to price your requirement?
Share your grade, form, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
