Zirconium
Zirconium 702 (R60702) and 705 (R60705) sheet, plate, bar, pipe, tube, flange and fitting — ASTM B551 / B550 / B523 / B658 for hot acid service.
What is zirconium?
Zirconium is a reactive metal that forms a tenacious zirconium oxide film, giving outstanding resistance to hydrochloric acid at all concentrations, sulphuric acid up to about 70%, nitric acid, urea and most organic acids and alkalis. Zr 702 (UNS R60702) is the standard corrosion grade; Zr 705 (R60705) adds niobium for higher strength.
Steelco Metal & Alloys supplies zirconium from Mumbai in sheet, plate, round bar, welded and seamless pipe, tube, flanges and fittings, cut to size for heat exchangers, columns and reactors. Every dispatch leaves our Mumbai warehouse with an EN 10204 3.1 mill test certificate (3.2 with TUV, SGS, BV, Lloyd's or IRS witness on request), PMI verification and full heat-number traceability.
Zirconium grades we stock.
Corrosion and strength grades supplied against chemical-plant specifications.
Zirconium we hold in ready stock.
Sheet & plate
0.5 – 50 mm Zr 702 and 705 to ASTM B551, annealed and pickled.

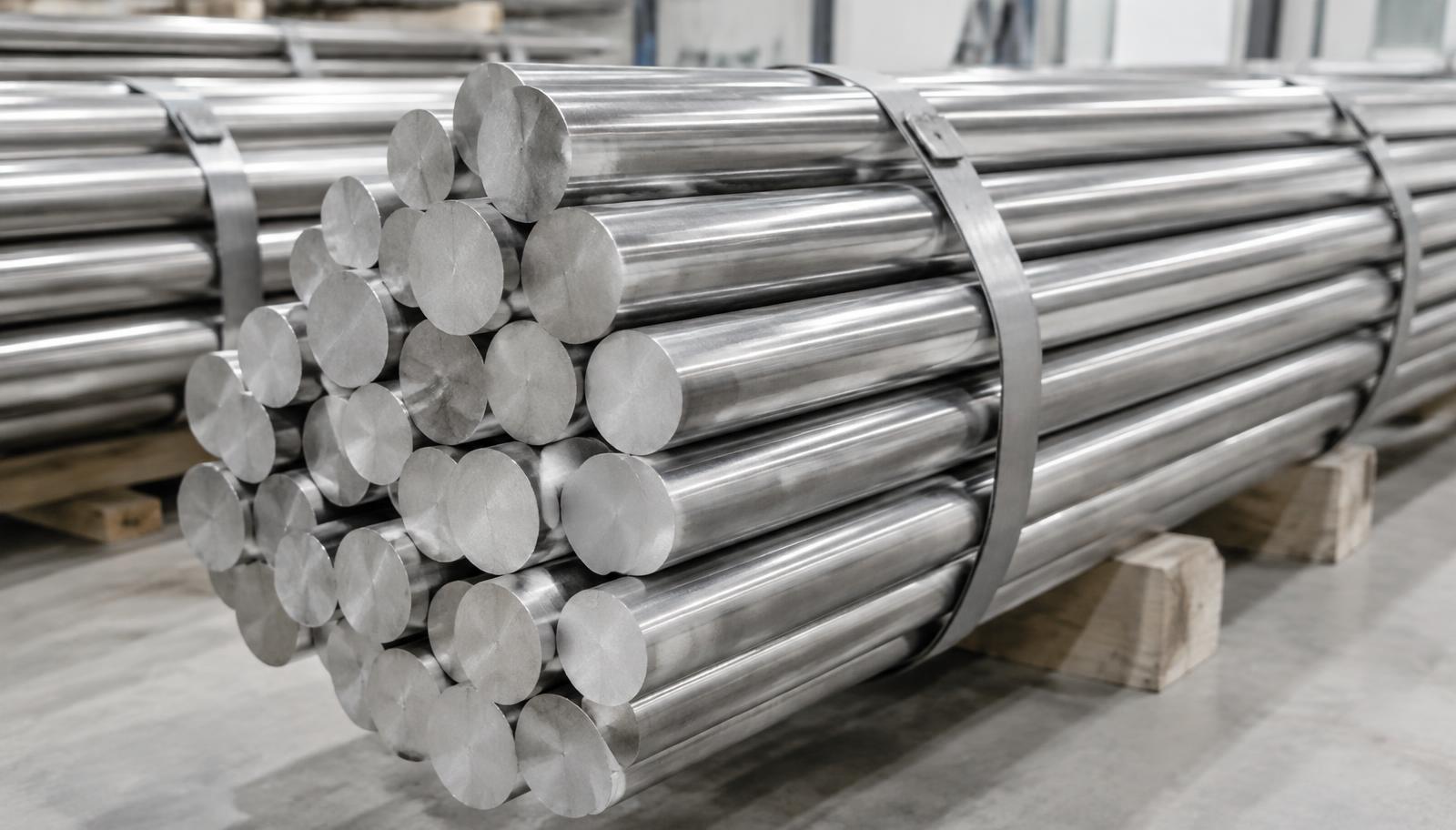

Round bar
Ø 10 – 200 mm to ASTM B550 for machined components and fasteners.
Pipe
Seamless and welded 1/2" – 12" NB to ASTM B658 / B523.

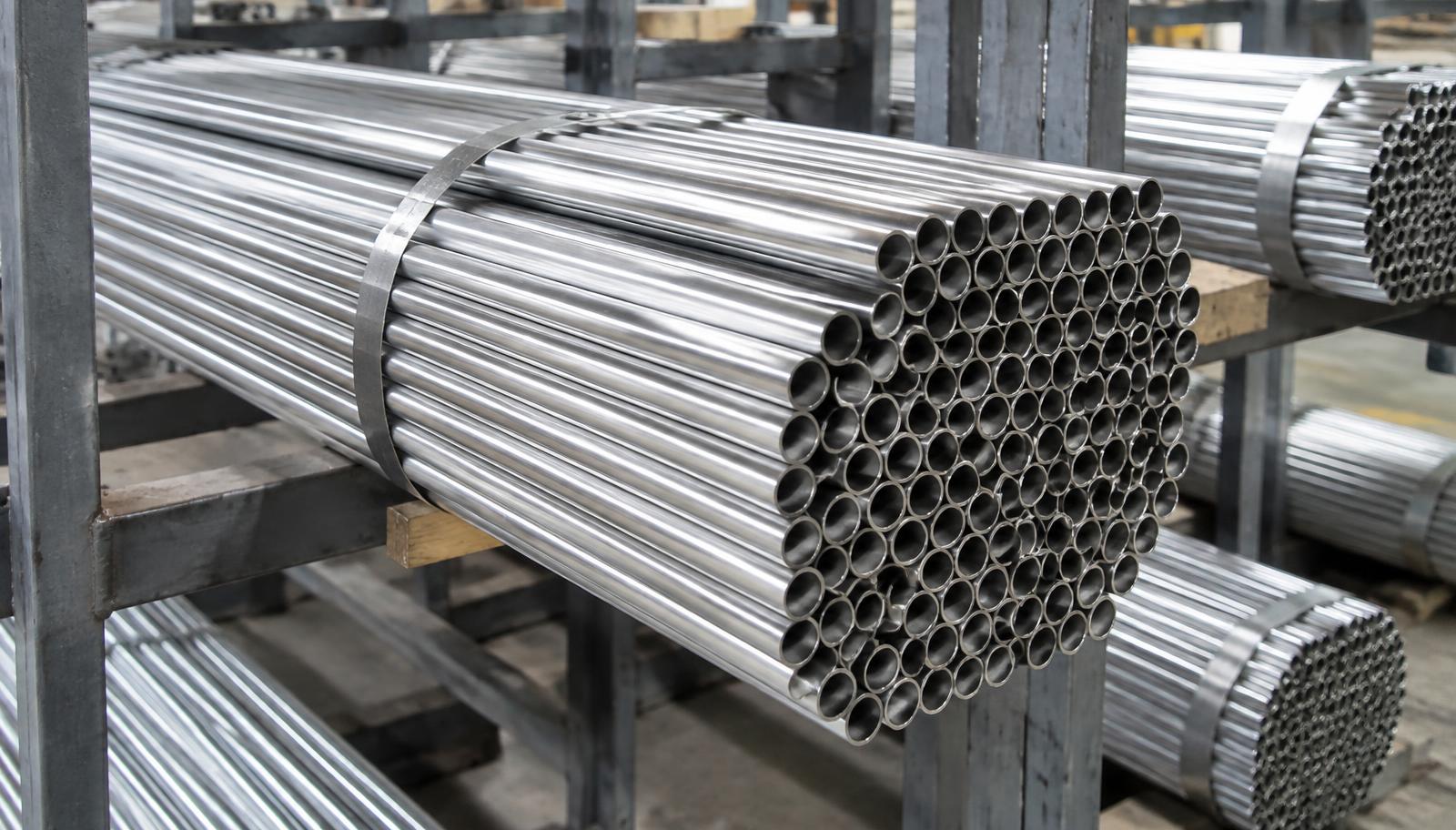

Tube
Ø 6 – 76 mm heat-exchanger and condenser tube to ASTM B523.
Flanges & fittings
Forged flanges and buttweld fittings to ASTM B493 / B653.
Fabricated equipment
Tube sheets, columns, reboilers and clad vessel linings.
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Our zirconium range
Ready stock across every mainstream form — dispatched with mill test certificates and full traceability from our Mumbai warehouse.
Sheet & Plate
0.5 – 50 mm annealed and pickled.
Explore
Round Bar
Ø 10 – 200 mm for machined parts.
Explore

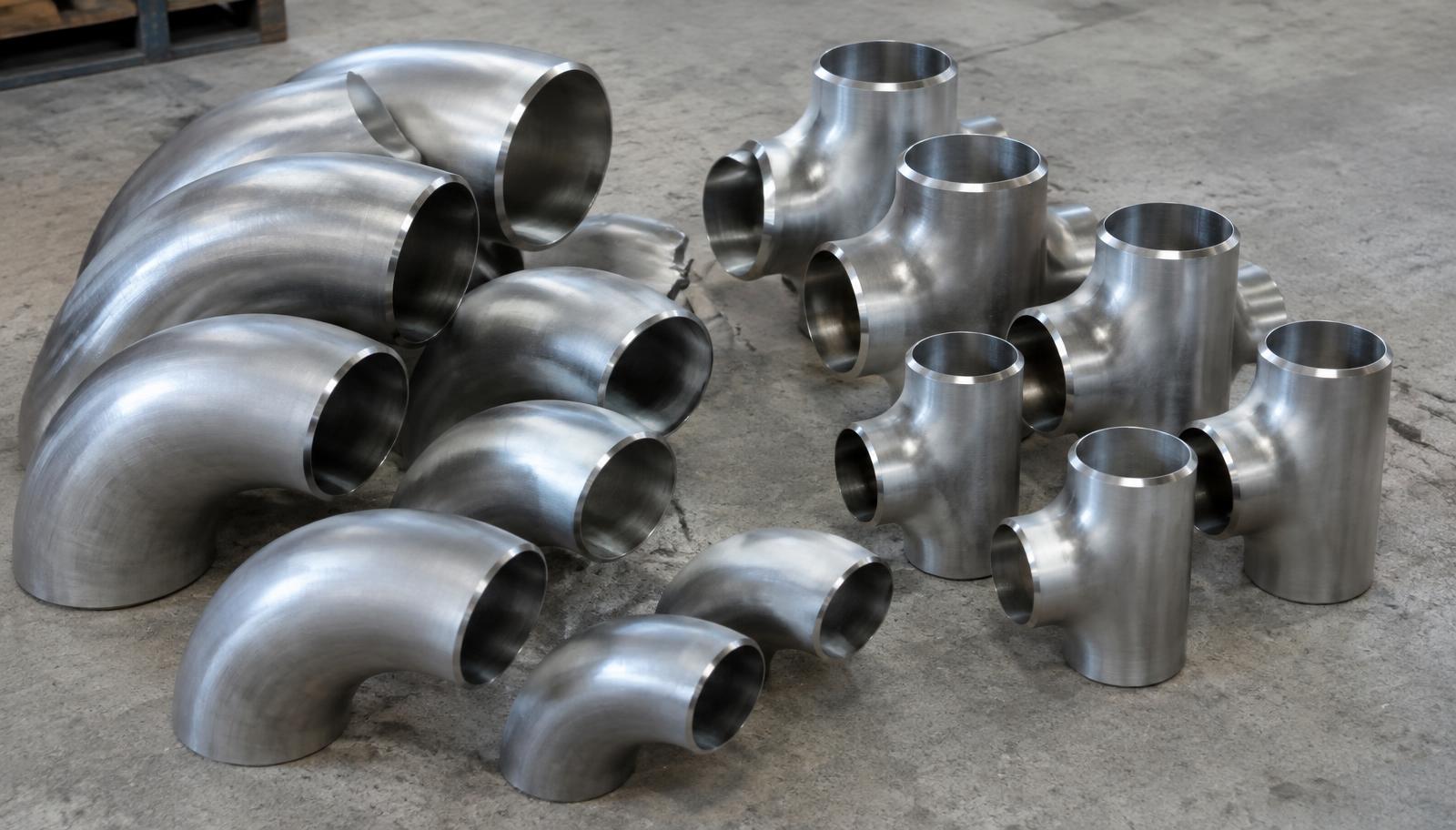

Pipe & Fittings
Seamless and welded 1/2" – 12" NB.
Explore
Tube
Ø 6 – 76 mm heat-exchanger tube.
Explore
Flanges
Forged flanges to ASTM B493.
Explore
Tube Sheets
Drilled and grooved to drawing.
Explore
Fasteners
Zr 702 studs, nuts and washers.
Explore
Welding Consumables
ERZr-2 filler wire.
ExploreZirconium specifications.
Standards, sizes, thickness and condition we routinely supply across every product form.
| Product | Size Range | Thickness / Wall | Finish / Condition | Standards |
|---|---|---|---|---|
Sheet | Up to 1200 mm wide | 0.5 – 6 mm | Annealed & pickled | ASTM B551 |
Plate | Up to 1500 mm wide | 6 – 50 mm | Annealed & pickled | ASTM B551 |
Round Bar | Ø 10 – 200 mm | — | Annealed, machined | ASTM B550 |
Welded Pipe | 1/2" – 12" NB | Sch 5S – Sch 40S | Annealed & pickled | ASTM B658 |
Tube | Ø 6 – 76 mm | 0.5 – 4 mm | Annealed | ASTM B523 |
Flanges & Fittings | 1/2" – 12" | Class 150 – 300 | Forged, machined | ASTM B493 / B653 |
Note: Hydride and corrosion testing per ASTM G2 available on request.
Where zirconium is used.
Chemical Processing
Hydrochloric and sulphuric acid heat exchangers, columns and reboilers in Zr 702.
Fertiliser & Urea
Urea strippers, condensers and high-pressure piping.
Pharma & Fine Chemicals
Reactors, agitators and condensers in mixed acid duty.
Nuclear
Zircaloy cladding and structural components with low neutron absorption.
Pulp & Paper
Bleach plant equipment handling chlorine dioxide.
Metal Refining
Acid leaching and electrowinning circuit equipment.
Frequently asked questions.
Answers to the questions our Mumbai desk is asked most often.
When should zirconium be used instead of Hastelloy or titanium?
+
Zirconium 702 is the better choice in hot hydrochloric acid at all concentrations, in sulphuric acid up to about 70%, and in urea service, where it outperforms both. Titanium is preferred for seawater and oxidising chlorides, and Hastelloy where the medium carries ferric or cupric chloride, which attack zirconium.
What is the difference between Zr 702 and Zr 705?
+
Zr 702 is unalloyed reactor-grade zirconium with about 380 MPa tensile strength, used for corrosion service. Zr 705 adds 2–3% niobium, raising tensile strength to about 550 MPa for pressure-retaining components where thinner walls or higher design stress are needed.
Can zirconium be welded?
+
Yes, by GTAW with full inert-gas shielding of the face, root and cooling weld, ideally in a chamber or with trailing shields. Like titanium, zirconium absorbs oxygen and nitrogen when hot, so a bright silver weld is required and any white or grey weld deposit must be rejected.
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
