ASTM A234 WPB
ASTM A234 WPB carbon steel elbows, tees, reducers and caps 1/2"–48" to ASME B16.9. Mumbai stockist and exporter, 3.1 MTC, exported worldwide.
About ASTM A234 WPB
ASTM A234 WPB carbon steel elbows, tees, reducers and caps 1/2"–48" to ASME B16.9. Mumbai stockist and exporter, 3.1 MTC, exported worldwide.

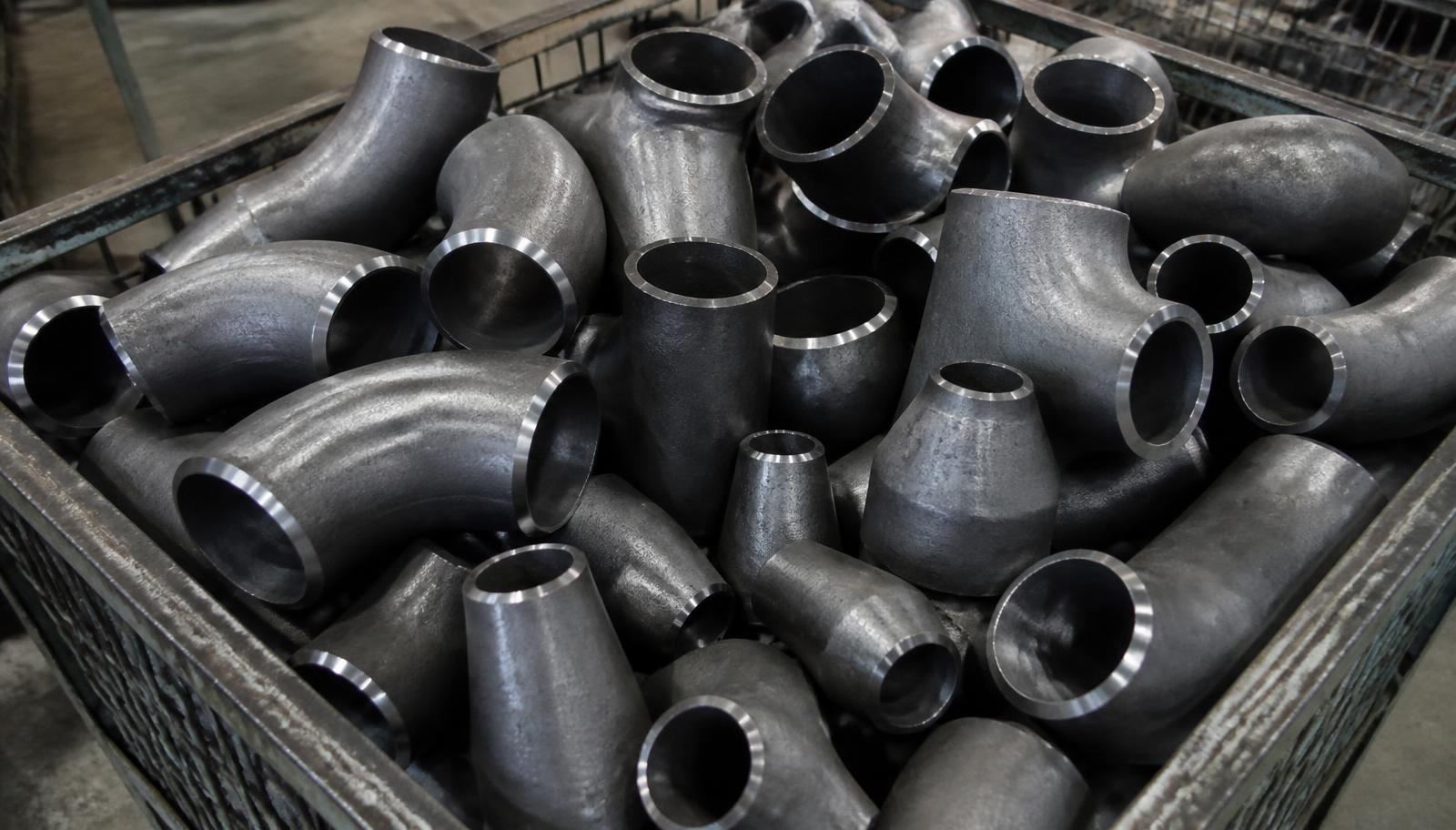

ASTM A234 WPB is the carbon steel buttweld fitting specification used with A106 and A53 pipe in moderate and high-temperature service. Elbows, tees, reducers and caps are hot- or cold-formed to ASME B16.9 dimensions from seamless or welded material with 415 MPa minimum tensile strength and 240 MPa minimum yield.
Steelco Metal & Alloys stocks ASTM A234 WPB (UNS K03006) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for ASTM A234 WPB
Available Forms
- Elbows 45° / 90° / 180°
- Tees
- Reducers
- Caps
- Stub Ends
- Bends
Size Range
- 1/2" – 48" NB
- Sch 10 to Sch XXS
- ASME B16.9 / B16.28 / MSS SP-75
Chemical composition of ASTM A234 WPB (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| C | Mn | P | S | Si |
|---|---|---|---|---|
| ≤ 0.30 | 0.29–1.06 | ≤ 0.050 | ≤ 0.058 | 0.10–— |
| max | range | max | max | range |
Mechanical properties of ASTM A234 WPB (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 415 MPa (60 ksi) |
| Yield Strength (min) | 240 MPa (35 ksi) |
| Elongation | 22% min (transverse) |
| Heat treatment | Normalised or normalised & tempered |
ASTM A234 WPB specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM A234 WPB / ASME SA234 WPB |
| EN / DIN | EN 10253-2 P235GH TC1 |
| JIS | JIS B2311 / B2312 |
| UNS | UNS K03006 |
| Density | 7.85 g/cm³ |
| Size Range | 1/2" – 48" NB · Sch 10 to Sch XXS · ASME B16.9 / B16.28 / MSS SP-75 |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for ASTM A234 WPB
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
