Hastelloy C276
Hastelloy C276 offers unparalleled corrosion resistance for chemical processing, marine and pollution-control industries.
About Hastelloy C276
Hastelloy C276 offers unparalleled corrosion resistance for chemical processing, marine and pollution-control industries.
Hastelloy C276 (UNS N10276) is a low-carbon nickel-molybdenum-chromium alloy with tungsten, and is the most universally corrosion-resistant alloy in common industrial use. It withstands both oxidising and reducing media, wet chlorine, hypochlorite, sulphuric and hydrochloric acids, and resists pitting, crevice attack and chloride stress-corrosion cracking.

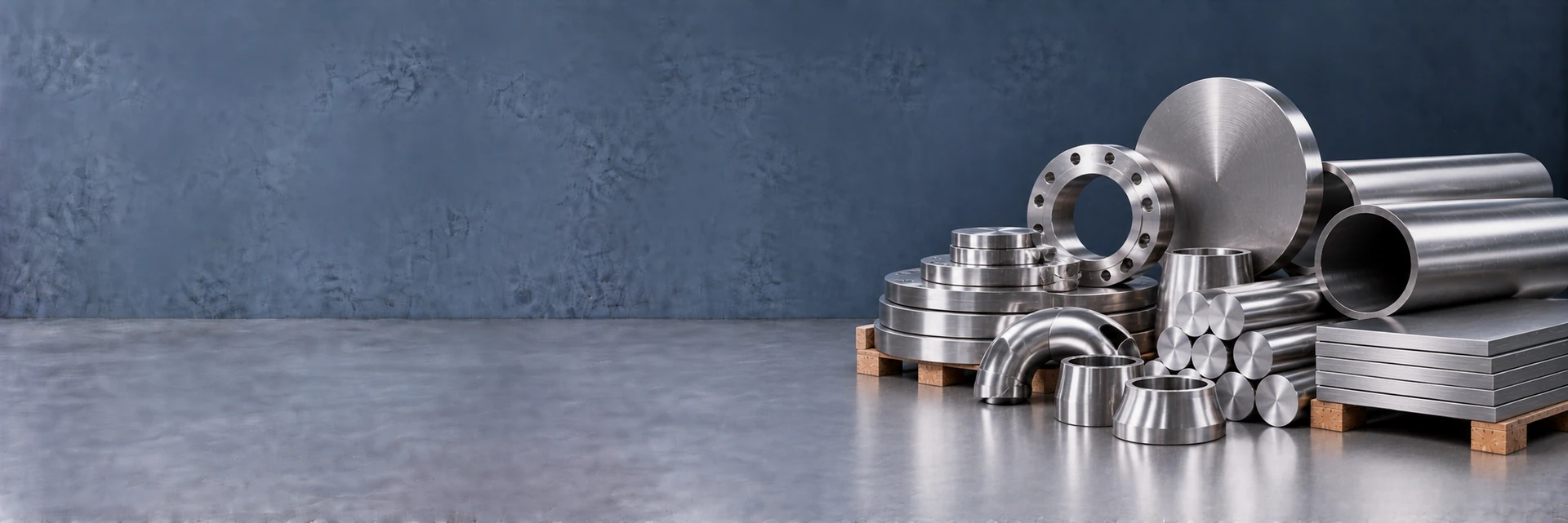

Steelco Metal & Alloys stocks Hastelloy C276 (UNS N10276) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Hastelloy C276
Available Forms
- Sheet
- Plate
- Round Bar
- Pipe
- Tube
- Flanges
- Fittings
- Forgings
Size Range
- Sheets 0.3–100 mm
- Coils 0.3–12 mm
- Bars 0.5–300 mm
- Pipes 1/2"–32" NB
Chemical composition of Hastelloy C276 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ni | Mo | Cr | Fe | W | Co | Mn | C |
|---|---|---|---|---|---|---|---|
| ≤ Balance | 15.0–17.0 | 14.5–16.5 | 4.0–7.0 | 3.0–4.5 | ≤ 2.50 | ≤ 1.00 | ≤ 0.010 |
| max | range | range | range | range | max | max | max |
Mechanical properties of Hastelloy C276 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 690 MPa (100 ksi) |
| Yield Strength (0.2%) | 283 MPa (41 ksi) |
| Elongation in 50 mm | 40% min |
| Hardness (Rockwell B) | 100 max |
Hastelloy C276 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B575 / B574 / B622 / B366 · UNS N10276 |
| EN / DIN | 2.4819 (NiMo16Cr15W) |
| JIS | NW 0276 |
| UNS | UNS N10276 |
| Density | 8.89 g/cm³ |
| Size Range | Sheets 0.3–100 mm · Coils 0.3–12 mm · Bars 0.5–300 mm · Pipes 1/2"–32" NB |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Hastelloy C276
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
Other grades you may also need
Ready to price your requirement?
Share your grade, form, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
