Hastelloy C22
Hastelloy C22 (N06022) in plate, sheet, bar and pipe, superior pitting and crevice corrosion resistance.
About Hastelloy C22
Hastelloy C22 (N06022) in plate, sheet, bar and pipe, superior pitting and crevice corrosion resistance.
Hastelloy C22 (UNS N06022) carries more chromium (20–22.5%) than C276, giving it better performance in strongly oxidising media such as ferric and cupric chlorides, nitric acid mixtures and wet chlorine, while retaining the molybdenum content needed for reducing acids. It offers outstanding resistance to pitting, crevice corrosion and weld-heat-affected-zone attack.
Steelco Metal & Alloys stocks Hastelloy C22 (UNS N06022) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.

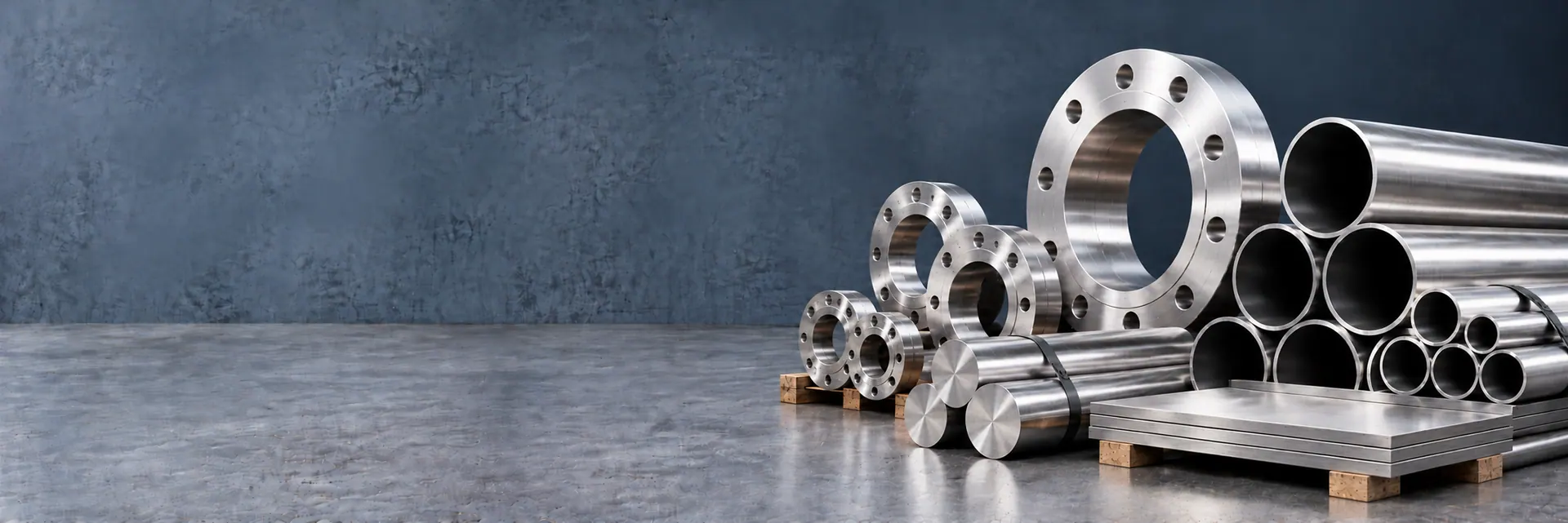

Available forms and size range for Hastelloy C22
Available Forms
- Sheet
- Plate
- Round Bar
- Pipe
- Tube
- Flanges
- Fittings
Size Range
- Sheets 0.3–100 mm
- Coils 0.3–12 mm
- Bars 0.5–300 mm
- Pipes 1/2"–32" NB
Chemical composition of Hastelloy C22 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ni | Cr | Mo | Fe | W | Co | V | C |
|---|---|---|---|---|---|---|---|
| ≤ Balance | 20.0–22.5 | 12.5–14.5 | 2.0–6.0 | 2.5–3.5 | ≤ 2.50 | ≤ 0.35 | ≤ 0.015 |
| max | range | range | range | range | max | max | max |
Mechanical properties of Hastelloy C22 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 690 MPa (100 ksi) |
| Yield Strength (0.2%) | 310 MPa (45 ksi) |
| Elongation in 50 mm | 45% min |
| Hardness (Rockwell B) | 100 max |
Hastelloy C22 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B575 / B574 / B622 / B619 · UNS N06022 |
| EN / DIN | 2.4602 (NiCr21Mo14W) |
| JIS | NW 6022 |
| UNS | UNS N06022 |
| Density | 8.69 g/cm³ |
| Size Range | Sheets 0.3–100 mm · Coils 0.3–12 mm · Bars 0.5–300 mm · Pipes 1/2"–32" NB |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Hastelloy C22
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
