Inconel 800/800H/800HT
Inconel 800, 800H and 800HT (UNS N08800/N08810/N08811) for high-temperature petrochemical and power-generation service.
About Incoloy 800 / 800H / 800HT
Inconel 800, 800H and 800HT (UNS N08800/N08810/N08811) for high-temperature petrochemical and power-generation service.
Incoloy 800 (UNS N08800) is an iron-nickel-chromium alloy with 30–35% nickel and 19–23% chromium for carburisation and oxidation resistance to about 815 °C. The 800H (N08810) and 800HT (N08811) variants use controlled carbon and a coarse grain size to deliver far higher creep and stress-rupture strength for service between 600 °C and 1100 °C.

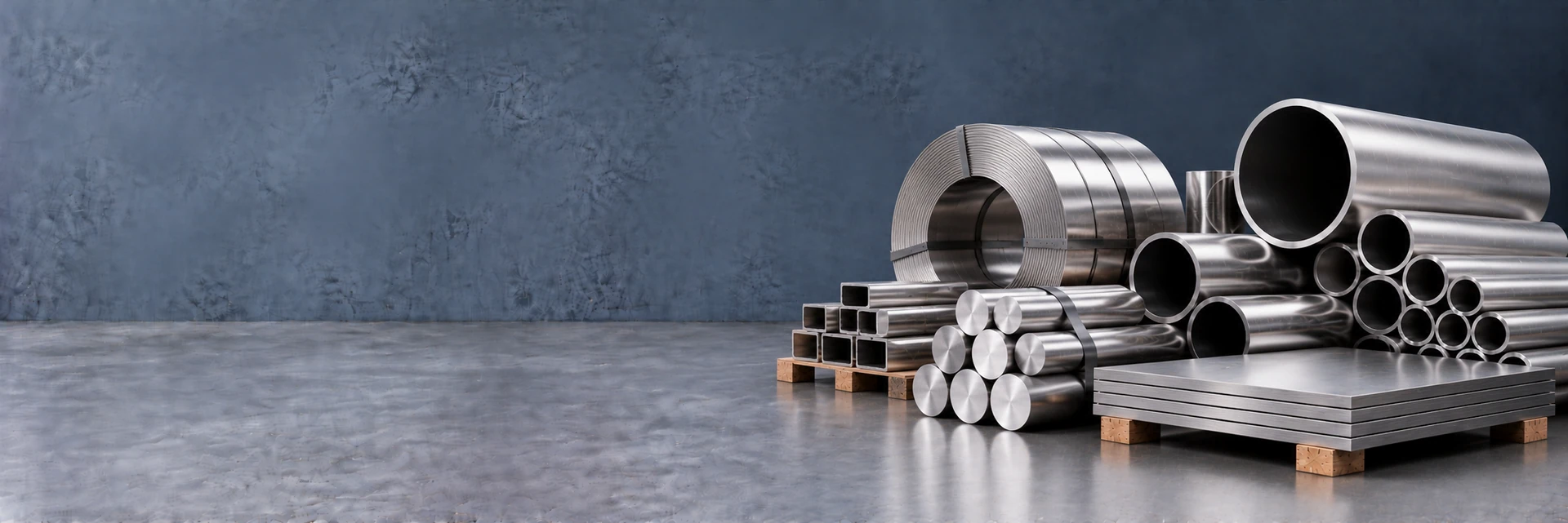

Steelco Metal & Alloys stocks Incoloy 800 / 800H / 800HT (UNS N08800 / N08810 / N08811) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Incoloy 800 / 800H / 800HT
Available Forms
- Sheet
- Plate
- Coil
- Round Bar
- Pipe
- Tube
- Flanges
- Fittings
Size Range
- Sheets 0.5–50 mm
- Bars Ø 6–300 mm
- Pipes 1/2"–24" NB
- Tubes 6–76 mm OD
Chemical composition of Incoloy 800 / 800H / 800HT (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ni | Cr | Fe | Al | Ti | C | Mn | Si |
|---|---|---|---|---|---|---|---|
| 30.0–35.0 | 19.0–23.0 | 39.5–Balance | 0.15–0.60 | 0.15–0.60 | ≤ 0.10 (800) / 0.05–0.10 (800H/HT) | ≤ 1.50 | ≤ 1.00 |
| range | range | range | range | range | max | max | max |
Mechanical properties of Incoloy 800 / 800H / 800HT (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 450 MPa (65 ksi) |
| Yield Strength (0.2%) | 170 MPa (25 ksi) |
| Elongation in 50 mm | 30% min |
| Grain Size (800H/HT) | ASTM 5 or coarser |
Incoloy 800 / 800H / 800HT specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B407 / B408 / B409 / B564 · UNS N08800 / N08810 / N08811 |
| EN / DIN | 1.4876 / 1.4958 / 1.4959 |
| JIS | NCF 800 / 800H |
| UNS | UNS N08800 / N08810 / N08811 |
| Density | 7.94 g/cm³ |
| Size Range | Sheets 0.5–50 mm · Bars Ø 6–300 mm · Pipes 1/2"–24" NB · Tubes 6–76 mm OD |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Incoloy 800 / 800H / 800HT
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
