Hastelloy B2
Hastelloy B2 (N10665) for hydrochloric-acid and reducing-environment service in chemical processing.
About Hastelloy B2
Hastelloy B2 (N10665) for hydrochloric-acid and reducing-environment service in chemical processing.
Hastelloy B2 (UNS N10665) is a nickel-molybdenum alloy with about 28% molybdenum and very low iron, chromium and carbon. It resists hydrochloric acid at all concentrations and temperatures, plus sulphuric, acetic and phosphoric acids in reducing conditions, and is the standard lining and vessel alloy for HCl service.

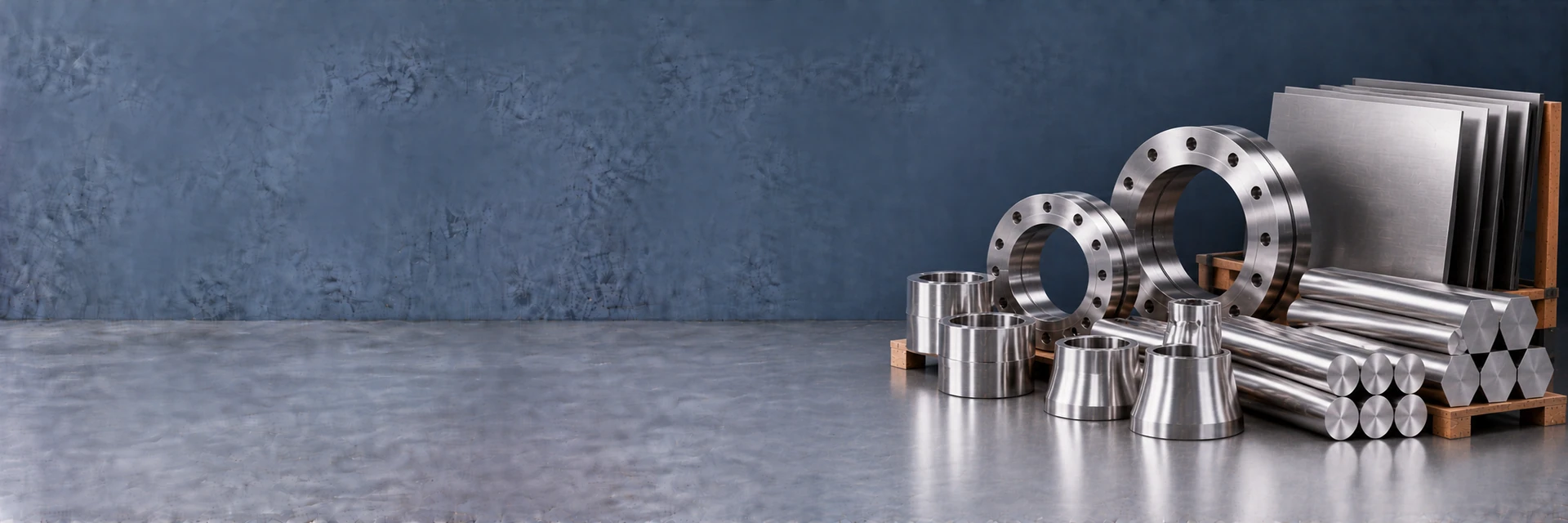

Steelco Metal & Alloys stocks Hastelloy B2 (UNS N10665) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Hastelloy B2
Available Forms
- Sheet
- Plate
- Round Bar
- Pipe
- Tube
- Flanges
- Fittings
Size Range
- Sheets 0.5–50 mm
- Bars Ø 6–250 mm
- Pipes 1/2"–24" NB
- Tubes 6–76 mm OD
Chemical composition of Hastelloy B2 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ni | Mo | Fe | Cr | Co | C | Mn | Si |
|---|---|---|---|---|---|---|---|
| 65.0–Balance | 26.0–30.0 | ≤ 2.00 | ≤ 1.00 | ≤ 1.00 | ≤ 0.02 | ≤ 1.00 | ≤ 0.10 |
| range | range | max | max | max | max | max | max |
Mechanical properties of Hastelloy B2 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 760 MPa (110 ksi) |
| Yield Strength (0.2%) | 350 MPa (51 ksi) |
| Elongation in 50 mm | 40% min |
| Hardness (Rockwell B) | 100 max, annealed |
Hastelloy B2 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B333 / B335 / B619 / B622 · UNS N10665 |
| EN / DIN | 2.4617 (NiMo28) |
| JIS | NW 0665 |
| UNS | UNS N10665 |
| Density | 9.22 g/cm³ |
| Size Range | Sheets 0.5–50 mm · Bars Ø 6–250 mm · Pipes 1/2"–24" NB · Tubes 6–76 mm OD |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Hastelloy B2
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
Other grades you may also need
Ready to price your requirement?
Share your grade, form, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
