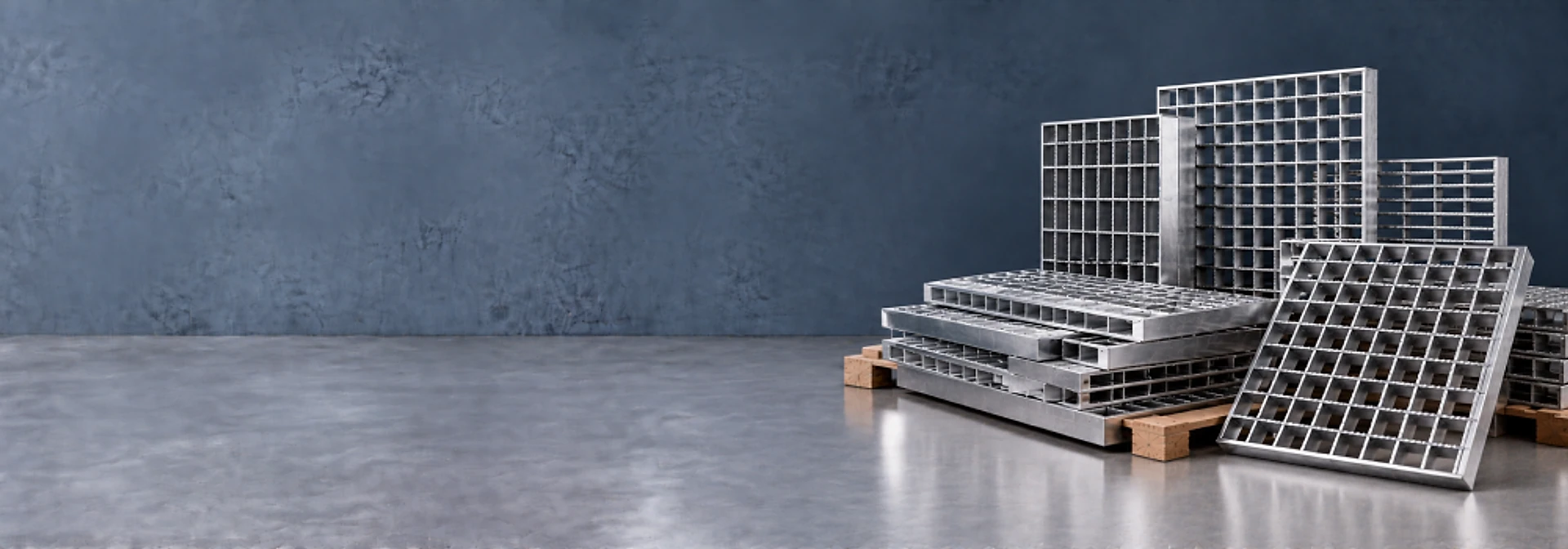

Swage-Locked Grating
Swage-locked press-locked grating for facades, screens and walkways, IS 2062 E250 steel. Mumbai manufacturer, stockist and exporter shipping to 40+ countries.
About Swage-Locked Grating
Swage-locked press-locked grating for facades, screens and walkways, IS 2062 E250 steel. Mumbai manufacturer, stockist and exporter shipping to 40+ countries.
Swage-locked grating is assembled by pressing cross bars into slotted bearing bars under high pressure, with no welding. The result is a flush, rigid panel with clean edges, used for architectural screens, building facades, sun shades and pedestrian areas where appearance matters as much as load capacity.
Steelco Metal & Alloys stocks Swage-Locked Grating (IS 2062 E250) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for Swage-Locked Grating
Available Forms
- Architectural Panels
- Facade Screens
- Walkway Panels
- Ceiling Grids
- Sun Shades
Size Range
- Bearing bar 25×2 to 50×5 mm
- pitch 11–66 mm
- panels to drawing
Chemical composition of Swage-Locked Grating (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| C | Mn | Si | P | S | CE |
|---|---|---|---|---|---|
| ≤ 0.23 | ≤ 1.50 | ≤ 0.40 | ≤ 0.045 | ≤ 0.045 | ≤ 0.42 |
| max | max | max | max | max | max |
Mechanical properties of Swage-Locked Grating (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 410 MPa |
| Yield Strength (min) | 250 MPa |
| Elongation (min) | 23% |
| Galvanising | IS 4759 hot-dip, 610 g/m² typical |
Swage-Locked Grating specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM A36 equivalent · IS 2062 E250 |
| EN / DIN | EN 10025 S235JR / S275JR |
| JIS | JIS G3101 SS400 |
| UNS | IS 2062 E250 |
| Density | 7.85 g/cm³ |
| Size Range | Bearing bar 25×2 to 50×5 mm · pitch 11–66 mm · panels to drawing |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Swage-Locked Grating
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
