Ta-2.5W
Ta-2.5W (UNS R05252) tantalum tungsten sheet, plate, bar and tube for acid pressure equipment. Mumbai stockist and exporter, 3.1 MTC, 40+ countries.
About Ta-2.5W
Ta-2.5W (UNS R05252) tantalum tungsten sheet, plate, bar and tube for acid pressure equipment. Mumbai stockist and exporter, 3.1 MTC, 40+ countries.
Ta-2.5W (UNS R05252) adds 2.5% tungsten to tantalum, raising tensile strength to roughly 310 MPa while keeping the corrosion resistance of unalloyed tantalum essentially unchanged. The extra strength allows thinner walls in pressure-containing acid equipment, reducing the cost of a very expensive metal.
Steelco Metal & Alloys stocks Ta-2.5W (UNS R05252) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.

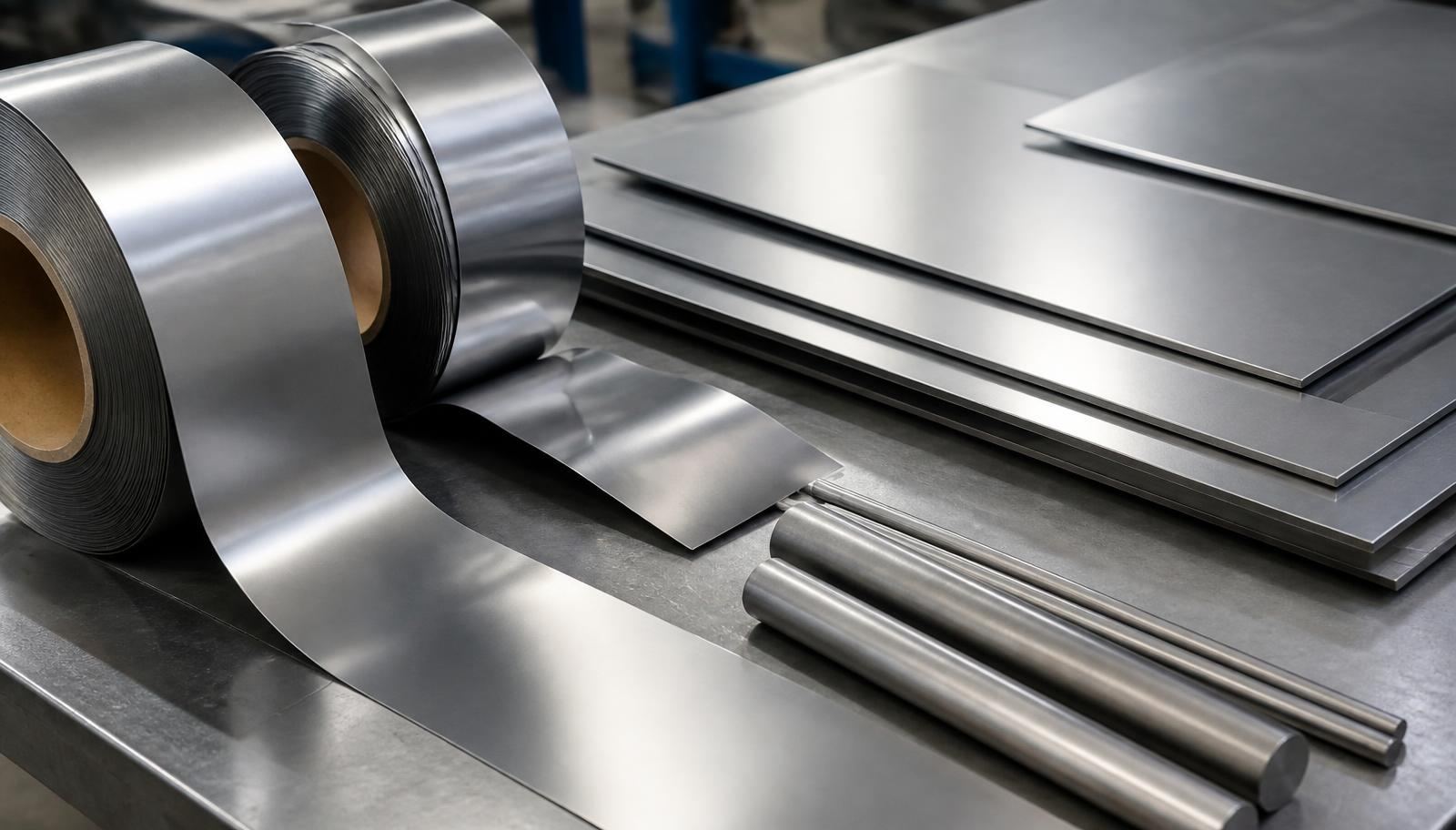

Available forms and size range for Ta-2.5W
Available Forms
- Sheet
- Plate
- Foil
- Round Bar
- Tube
- Wire
- Fabricated Parts
Size Range
- Sheet 0.5 – 6 mm
- bar Ø 3 – 75 mm
- tube and fabricated assemblies on request
Chemical composition of Ta-2.5W (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ta | W | Nb | C | O | N |
|---|---|---|---|---|---|
| ≤ Balance | 2.0–3.5 | ≤ 0.50 | ≤ 0.010 | ≤ 0.015 | ≤ 0.010 |
| max | range | max | max | max | max |
Mechanical properties of Ta-2.5W (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (annealed) | 310 MPa min |
| Yield Strength (0.2%) | 205 MPa min |
| Elongation | 20% min |
| Density | 16.6 g/cm³ |
Ta-2.5W specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM B708 / B521 / B365 · UNS R05252 |
| EN / DIN | Ta2.5W (nearest) |
| JIS | — |
| UNS | UNS R05252 |
| Density | 16.60 g/cm³ |
| Size Range | Sheet 0.5 – 6 mm · bar Ø 3 – 75 mm · tube and fabricated assemblies on request |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Ta-2.5W
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
Other grades you may also need
Ready to price your requirement?
Share your grade, form, size and quantity — our Mumbai desk responds with pricing, stock position and lead time, usually the same working day.
