ER309L / E309L-16
ER309L wire and E309L-16 electrodes for stainless-to-carbon steel joints and cladding buffer layers. Mumbai stockist, importer and exporter to 40+ countries.
About ER309L / E309L-16
ER309L wire and E309L-16 electrodes for stainless-to-carbon steel joints and cladding buffer layers. Mumbai stockist, importer and exporter to 40+ countries.
ER309L and E309L-16 have higher chromium and nickel than 308L, so they can absorb dilution from carbon steel and still give a crack-resistant austenitic weld. They are used to join stainless steel to mild or low-alloy steel, and as the first buffer layer when cladding carbon steel with stainless.
Steelco Metal & Alloys stocks ER309L / E309L-16 (AWS A5.9 / A5.4) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.

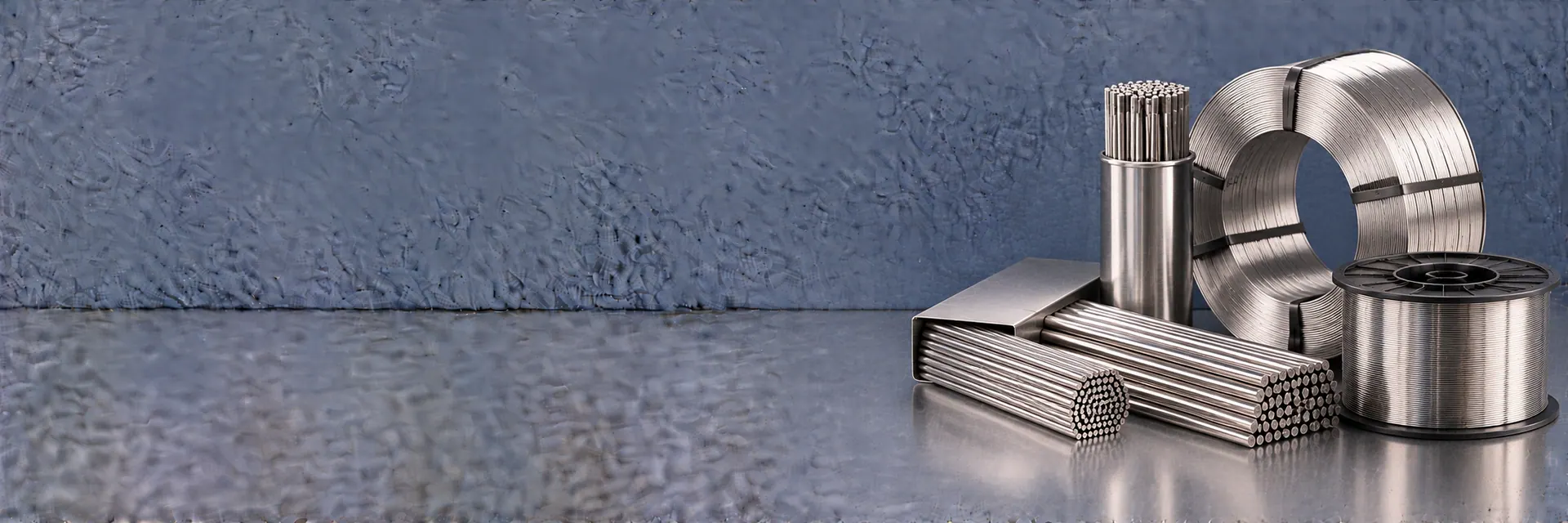

Available forms and size range for ER309L / E309L-16
Available Forms
- TIG Filler Rod
- MIG Wire
- Covered Electrodes
- Strip & Overlay
- SAW Wire
Size Range
- Wire Ø 0.8–1.6 mm
- TIG rod Ø 1.6–3.2 mm
- electrodes Ø 2.5–5.0 mm
- strip 60 × 0.5 mm
Chemical composition of ER309L / E309L-16 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| C | Cr | Ni | Mo | Mn | Si |
|---|---|---|---|---|---|
| ≤ 0.03 | 23.0–25.0 | 12.0–14.0 | ≤ 0.75 | 1.0–2.5 | 0.30–0.65 |
| max | range | range | max | range | range |
Mechanical properties of ER309L / E309L-16 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min, weld metal) | 520 MPa |
| Elongation (min) | 30% |
| Ferrite | FN 8–20 typical |
ER309L / E309L-16 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | AWS A5.9 ER309L · A5.4 E309L-16 |
| EN / DIN | EN ISO 14343 23 12 L |
| JIS | JIS Z3321 YS309L |
| UNS | AWS A5.9 / A5.4 |
| Density | 7.90 g/cm³ |
| Size Range | Wire Ø 0.8–1.6 mm · TIG rod Ø 1.6–3.2 mm · electrodes Ø 2.5–5.0 mm · strip 60 × 0.5 mm |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for ER309L / E309L-16
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
