ERNiCrMo-3
ERNiCrMo-3 (Inconel 625 type) TIG rod, MIG wire and electrodes for 625, 904L and dissimilar joints. Mumbai stockist, importer and exporter to 40+ countries.
About ERNiCrMo-3
ERNiCrMo-3 (Inconel 625 type) TIG rod, MIG wire and electrodes for 625, 904L and dissimilar joints. Mumbai stockist, importer and exporter to 40+ countries.
ERNiCrMo-3 is the Inconel 625-type nickel filler metal, with about 21% chromium, 9% molybdenum and 3.6% niobium. It welds Inconel 625, 904L and 6Mo super-austenitic steels, and joins dissimilar metals such as nickel alloy to carbon steel. It is also widely used for corrosion-resistant weld overlay.
Steelco Metal & Alloys stocks ERNiCrMo-3 (AWS A5.14 · UNS N06625) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.

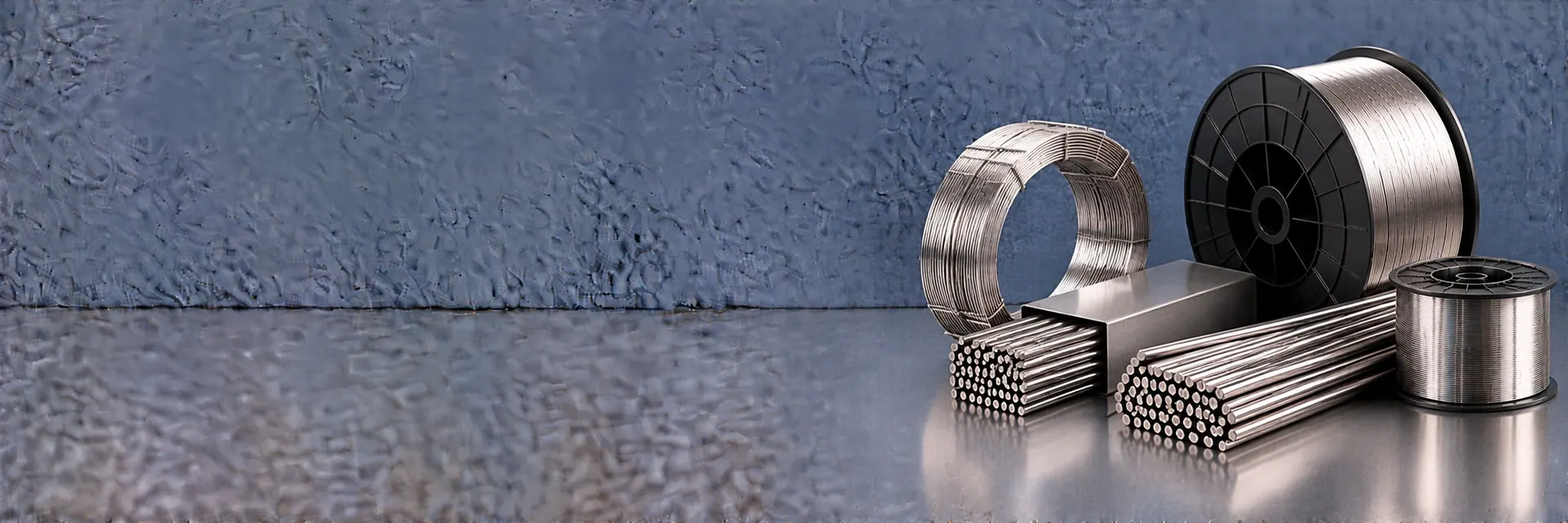

Available forms and size range for ERNiCrMo-3
Available Forms
- TIG Filler Rod
- MIG Wire
- Covered Electrodes
- Strip & Overlay
- SAW Wire
Size Range
- Wire Ø 0.8–1.6 mm
- TIG rod Ø 1.6–3.2 mm
- electrodes Ø 2.5–4.0 mm
Chemical composition of ERNiCrMo-3 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Ni | Cr | Mo | Nb + Ta | Fe | C |
|---|---|---|---|---|---|
| ≤ Balance (58.0 min) | 20.0–23.0 | 8.0–10.0 | 3.15–4.15 | ≤ 5.0 | ≤ 0.10 |
| max | range | range | range | max | max |
Mechanical properties of ERNiCrMo-3 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (weld metal) | 760 MPa typical |
| Elongation | 30% typical |
| Service temperature | Cryogenic to 980 °C |
ERNiCrMo-3 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | AWS A5.14 ERNiCrMo-3 · A5.11 ENiCrMo-3 |
| EN / DIN | EN ISO 18274 S Ni 6625 |
| JIS | JIS Z3334 YNiCrMo-3 |
| UNS | AWS A5.14 · UNS N06625 |
| Density | 8.44 g/cm³ |
| Size Range | Wire Ø 0.8–1.6 mm · TIG rod Ø 1.6–3.2 mm · electrodes Ø 2.5–4.0 mm |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for ERNiCrMo-3
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
