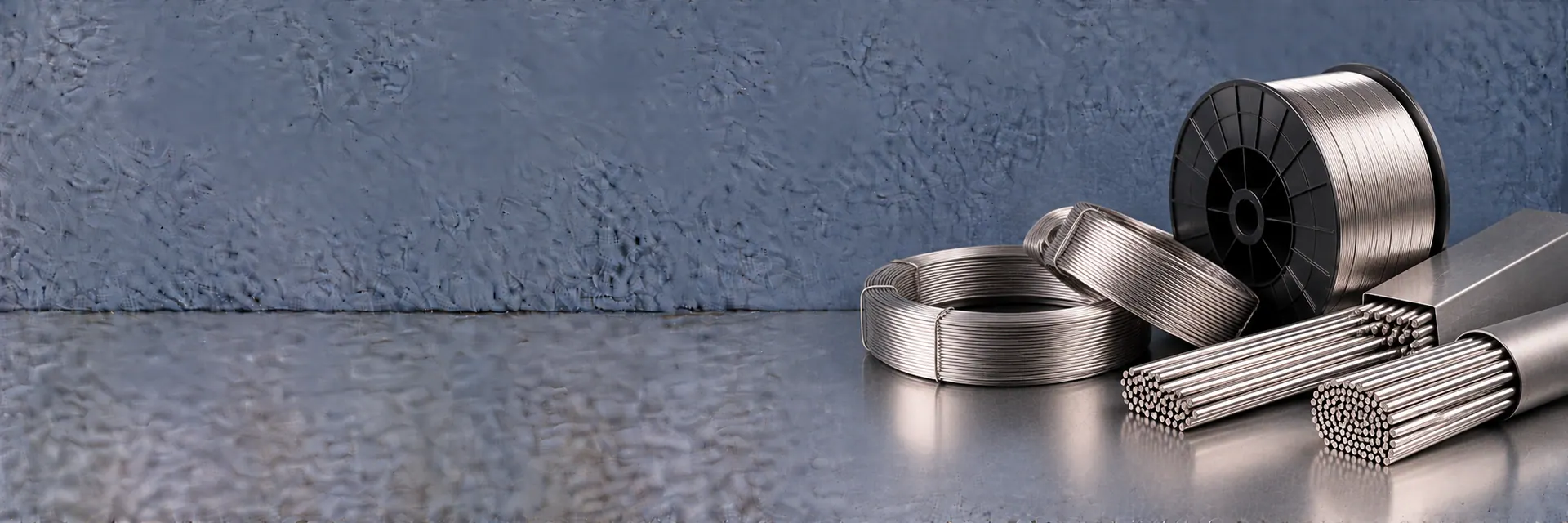

ER347 / E347-16
ER347 wire and E347-16 niobium-stabilised electrodes for welding SS 321 and SS 347 up to 815 C. Mumbai stockist, importer and exporter to 40+ countries.
About ER347 / E347-16
ER347 wire and E347-16 niobium-stabilised electrodes for welding SS 321 and SS 347 up to 815 C. Mumbai stockist, importer and exporter to 40+ countries.
ER347 and E347-16 are stabilised with niobium, which ties up carbon so chromium carbides cannot form during high-temperature service. They are used to weld SS 321 and SS 347 in equipment running between 425 °C and 815 °C, such as refinery heaters and exhaust systems.
Steelco Metal & Alloys stocks ER347 / E347-16 (AWS A5.9 / A5.4) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.
Available forms and size range for ER347 / E347-16
Available Forms
- TIG Filler Rod
- MIG Wire
- Covered Electrodes
- SAW Wire
Size Range
- Wire Ø 0.8–1.6 mm
- TIG rod Ø 1.6–3.2 mm
- electrodes Ø 2.5–5.0 mm
Chemical composition of ER347 / E347-16 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| C | Cr | Ni | Nb | Mn | Si |
|---|---|---|---|---|---|
| ≤ 0.08 | 19.0–21.5 | 9.0–11.0 | 10×C–1.0 | 1.0–2.5 | 0.30–0.65 |
| max | range | range | range | range | range |
Mechanical properties of ER347 / E347-16 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min, weld metal) | 520 MPa |
| Elongation (min) | 30% |
| Service temperature | Up to 815 °C |
ER347 / E347-16 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | AWS A5.9 ER347 · A5.4 E347-16 |
| EN / DIN | EN ISO 14343 19 9 Nb |
| JIS | JIS Z3321 YS347 |
| UNS | AWS A5.9 / A5.4 |
| Density | 8.00 g/cm³ |
| Size Range | Wire Ø 0.8–1.6 mm · TIG rod Ø 1.6–3.2 mm · electrodes Ø 2.5–5.0 mm |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for ER347 / E347-16
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
