Zeron 100 alloy
Zeron 100 (UNS S32760) super-duplex stainless steel for sub-sea, oil & gas and chemical service.
About Zeron 100
Zeron 100 (UNS S32760) super-duplex stainless steel for sub-sea, oil & gas and chemical service.
Zeron 100 (UNS S32760) is a 25% chromium super-duplex stainless steel with tungsten and copper additions, giving a PREN above 40 and certified resistance to seawater, sour service and acid chloride media. Its 750 MPa minimum tensile strength allows lighter, thinner sections than austenitic grades in subsea and desalination equipment.
Steelco Metal & Alloys stocks Zeron 100 (UNS S32760) in Mumbai, India as a stockist, importer and exporter, and ships to 40+ countries. Every dispatch carries EN 10204 3.1 (3.2 on request) mill test certificates, PMI verification and is open to third-party inspection.

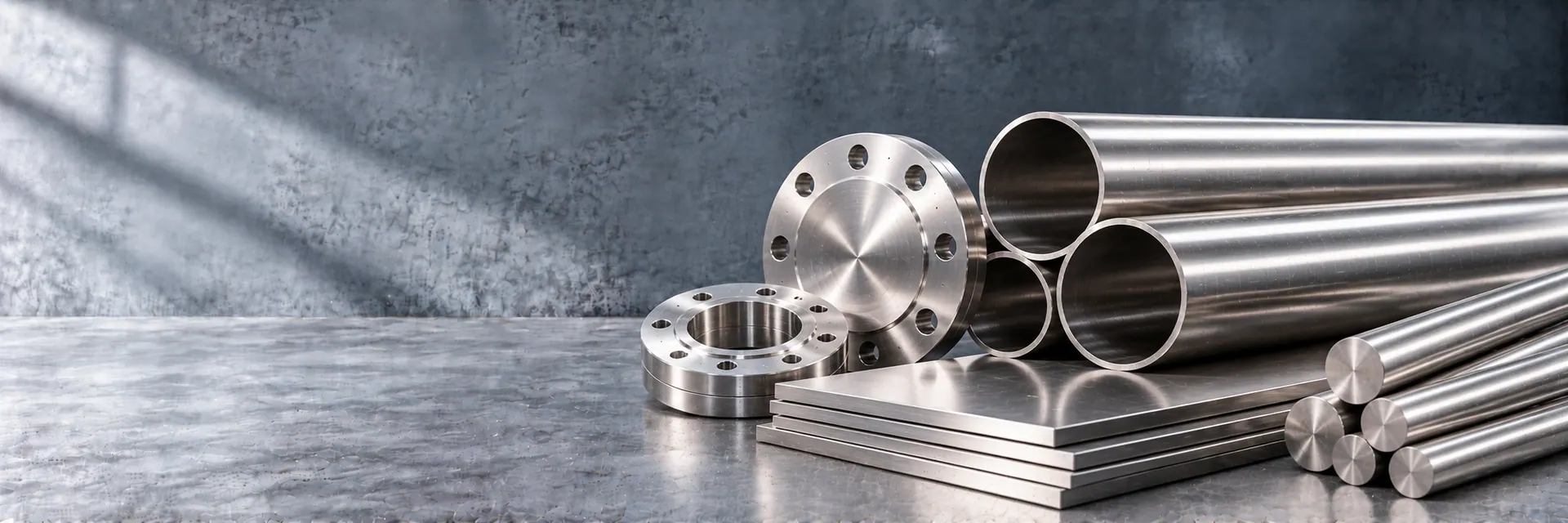

Available forms and size range for Zeron 100
Available Forms
- Sheet
- Plate
- Round Bar
- Pipe
- Tube
- Flanges
- Fittings
- Forgings
Size Range
- Plates 3–80 mm
- Bars Ø 6–300 mm
- Pipes 1/2"–24" NB
- Forged flanges 1/2"–36"
Chemical composition of Zeron 100 (% by weight)
Values are per the governing ASTM / ASME product specification. A single value means a maximum; a range shows the specified minimum and maximum. Balance is iron.
| Cr | Ni | Mo | W | Cu | N | C | Mn |
|---|---|---|---|---|---|---|---|
| 24.0–26.0 | 6.00–8.00 | 3.00–4.00 | 0.50–1.00 | 0.50–1.00 | 0.20–0.30 | ≤ 0.030 | ≤ 1.00 |
| range | range | range | range | range | range | max | max |
Mechanical properties of Zeron 100 (annealed, room temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength (min) | 750 MPa (109 ksi) |
| Yield Strength (0.2%) | 550 MPa (80 ksi) |
| Elongation in 50 mm | 25% min |
| PREN | 40 minimum |
Zeron 100 specifications and international equivalents
| Attribute | Details |
|---|---|
| ASTM / ASME | ASTM A240 / A182 / A790 / A815 · UNS S32760 |
| EN / DIN | 1.4501 (X2CrNiMoCuWN25-7-4) |
| JIS | SUS 329J4L equivalent |
| UNS | UNS S32760 |
| Density | 7.84 g/cm³ |
| Size Range | Plates 3–80 mm · Bars Ø 6–300 mm · Pipes 1/2"–24" NB · Forged flanges 1/2"–36" |
| Certifications | EN 10204 3.1 / 3.2 MTC · PMI · Third-party inspection |
Use our free metal weight calculator — bars, sheets, plates, pipes and sections.
Typical applications for Zeron 100
Every dispatch is traceable, tested and certified.
Material is supplied with EN 10204 3.1 (3.2 on request) mill test certificates, PMI and spectro verification, and is open to third-party inspection by TUV, SGS, BV, Lloyd’s and IRS from our Mumbai warehouse.
EN 10204 3.1 / 3.2
Mill test certificate with every consignment.
PMI & Spectro
Positive material identification before dispatch.
Third-party Inspection
TUV · SGS · BV · Lloyd's · IRS welcome.
Export Documentation
Full set prepared for 40+ countries.
