Nitronic 50 and Monel 400 Welding: A Professional’s Guide

Welding specialized materials like Nitronic 50 and Monel 400 requires precision, expertise, and the right tools to achieve high-performance results.

Welding specialized materials like Nitronic 50 and Monel 400 requires precision, expertise, and the right tools to achieve high-performance results. Both materials are renowned for their exceptional properties, such as corrosion resistance and strength, making them popular in industries like marine, chemical, and aerospace. However, welding these materials presents unique challenges that demand a tailored approach.

This guide provides a comprehensive overview of Nitronic 50 welding and Monel 400 welding, including their properties, techniques, and best practices for joining dissimilar metals like Monel 400 and carbon steel.

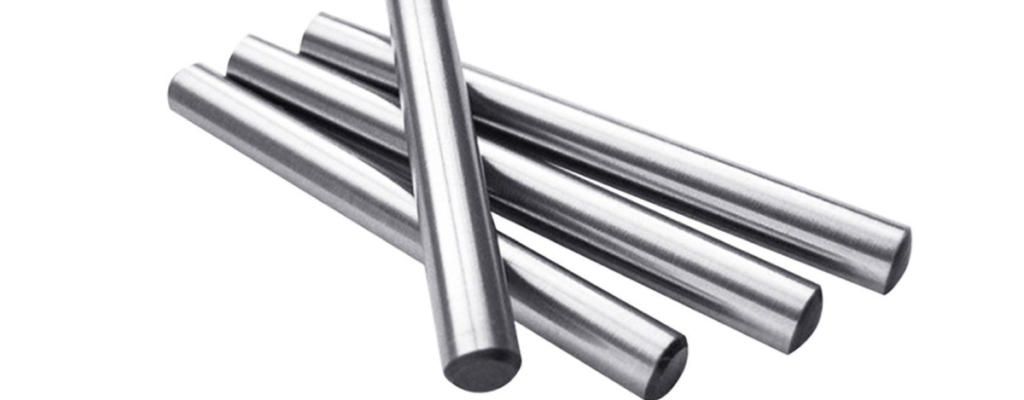

What is Nitronic 50?

Nitronic 50 is a nitrogen-strengthened austenitic stainless steel with outstanding corrosion resistance, strength, and durability. It’s widely used in marine environments, chemical processing, and high-strength applications.

Key Properties:

  • Corrosion Resistance: Superior to standard stainless steels, even in harsh environments.
  • Strength: High yield and tensile strength compared to other stainless steels.
  • Weldability: Good weldability but requires controlled techniques to maintain properties.
2. Stainless Steel Sheets

What is Monel 400?

Monel 400 is a nickel-copper alloy known for its excellent resistance to corrosion and high temperatures. It is commonly used in marine, chemical, and oil & gas industries.

Key Properties:

  • Corrosion Resistance: Exceptional in seawater and acidic environments.
  • Ductility: Retains mechanical properties over a wide temperature range.
  • Weldability: Can be welded using conventional techniques, but care is needed to avoid cracking.
2. Stainless Steel Sheets

Challenges in Welding Nitronic 50 and Monel 400

  • Material Composition: Different thermal expansion rates and metallurgical properties can complicate the welding process.
  • Corrosion Resistance: Maintaining corrosion resistance in the heat-affected zone (HAZ) requires precise heat control.
  • Cracking Risks: High nickel content in Monel 400 can lead to weld solidification cracking if not properly managed.

Nitronic 50 Welding: Techniques and Best Practices

1. Welding Processes

  • TIG (GTAW): Provides excellent control and precision, ideal for Nitronic 50.
  • MIG (GMAW): Suitable for larger projects but requires careful parameter control.

2. Filler Material

  • Use an austenitic stainless steel filler material like ER2209 or ER2594 to maintain corrosion resistance and strength.

3. Preheating and Post-Weld Heat Treatment

  • Preheating is typically not required for Nitronic 50.
  • Avoid excessive heat input to prevent sensitization and maintain mechanical properties.

4. Techniques for Best Results

  • Use a low heat input to minimize distortion and preserve the material’s properties.
  • Ensure proper shielding gas coverage to prevent contamination.

Monel 400 Welding: Techniques and Best Practices

1. Welding Processes

  • TIG (GTAW): Preferred for precision applications.
  • MIG (GMAW): Used for thicker sections or production environments.
  • Stick Welding (SMAW): Common for field repairs and heavy-duty applications.

2. Filler Material

  • Use Monel 60 or ERNiCu-7 filler metal for welding Monel 400. These fillers match the composition of Monel 400 and prevent cracking.

3. Preheating and Post-Weld Heat Treatment

  • Preheating is generally not required.
  • Post-weld heat treatment is not usually necessary unless specified for stress relief.

4. Techniques for Best Results

  • Minimize heat input to avoid porosity and cracking.
  • Clean surfaces thoroughly to remove contaminants that can weaken the weld.

Welding Monel 400 to Carbon Steel

Joining dissimilar metals like Monel 400 and carbon steel requires special considerations to achieve a strong, corrosion-resistant bond.

Challenges:

  • Differences in thermal conductivity and expansion rates.
  • Risk of galvanic corrosion if not properly managed.

Recommended Filler Material:

  • ERNiCr-3 (Inconel 82): Provides good compatibility between Monel 400 and carbon steel.

Best Practices:

  1. Pre-Weld Preparation:
    • Thoroughly clean both materials to remove grease, oil, and oxide layers.
  2. Welding Technique:
    • Use a TIG or MIG process for better control.
    • Employ a multi-pass technique to ensure uniform bonding.
  3. Post-Weld Inspection:
    • Check for cracks, porosity, and other defects using NDT methods like dye penetrant testing or X-ray.
2. Stainless Steel Sheets

Tips for Success

  1. Control Heat Input: Excessive heat can degrade corrosion resistance and mechanical properties.
  2. Use Proper Filler Metals: Ensure compatibility with the base materials to avoid cracking or weld failures.
  3. Perform Testing: Conduct tensile and corrosion tests on the welded joint for critical applications.
  4. Work with Experts: Welding specialized materials like Nitronic 50 and Monel 400 is best handled by experienced professionals.

Conclusion

Welding Nitronic 50 and Monel 400 demands a detailed understanding of their properties and the right techniques to achieve optimal results. Whether you’re working on marine applications, chemical plants, or offshore platforms, following best practices ensures strong, durable, and corrosion-resistant welds.

Need high-quality welding materials or expert advice? Contact us today to explore tailored solutions for your industrial welding needs!

FAQ

Yes, but it requires careful selection of filler materials and control of heat input to ensure a strong and corrosion-resistant bond.
Filler metals like Monel 60 or ERNiCu-7 are commonly used for welding Monel 400.
Excessive heat input can lead to cracking, loss of corrosion resistance, and mechanical property degradation in both materials.
