Zeron 100 Tubes and Material Guide for Industrial Use
In this guide, we delve into the properties of Zeron 100, its chemical composition, applications, and comparisons with similar materials like 2507.
Zeron 100 is a high-performance super duplex stainless steel that has gained prominence across industries for its exceptional corrosion resistance, mechanical strength, and cost-effectiveness. This alloy is particularly suited for aggressive environments, making it ideal for applications in oil and gas, chemical processing, marine, and desalination industries. In this guide, we delve into the properties of Zeron 100, its chemical composition, applications, and comparisons with similar materials like 2507.
What Is Zeron 100?
Zeron 100 is a super duplex stainless steel alloy developed by Rolled Alloys. It features a balanced dual-phase microstructure consisting of equal parts austenite and ferrite, which provides superior mechanical properties and corrosion resistance. Its unique chemical composition includes:
- Chromium (Cr): 24-26%
- Nickel (Ni): 6-8%
- Molybdenum (Mo): 3-4%
- Copper (Cu): 0.5-1%
- Tungsten (W): 0.5-1%
- Nitrogen (N): 0.2-0.3%
- Iron (Fe): Balance.
This composition ensures high resistance to pitting, crevice corrosion, stress corrosion cracking, and erosion corrosion in chloride-rich environments.
Key Features of Zeron 100
Zeron 100 stands out due to its outstanding corrosion resistance:
Corrosion Resistance:
- Guaranteed performance with a Pitting Resistance Equivalent Number (PREN) ≥ 40.
- Superior resistance to mineral acids like hydrochloric and sulfuric acid.
- Excellent performance in seawater and sour environments.
Mechanical Strength:
- Yield strength is twice that of standard austenitic stainless steels.
- Ultimate tensile strength of 109 ksi (751 MPa) and yield strength of 80 ksi (552 MPa).
Temperature Performance:
- Retains mechanical properties at elevated temperatures but is not recommended for prolonged exposure above 572°F.
Cost Efficiency:
- Provides a cost-effective alternative to high nickel alloys with comparable performance.

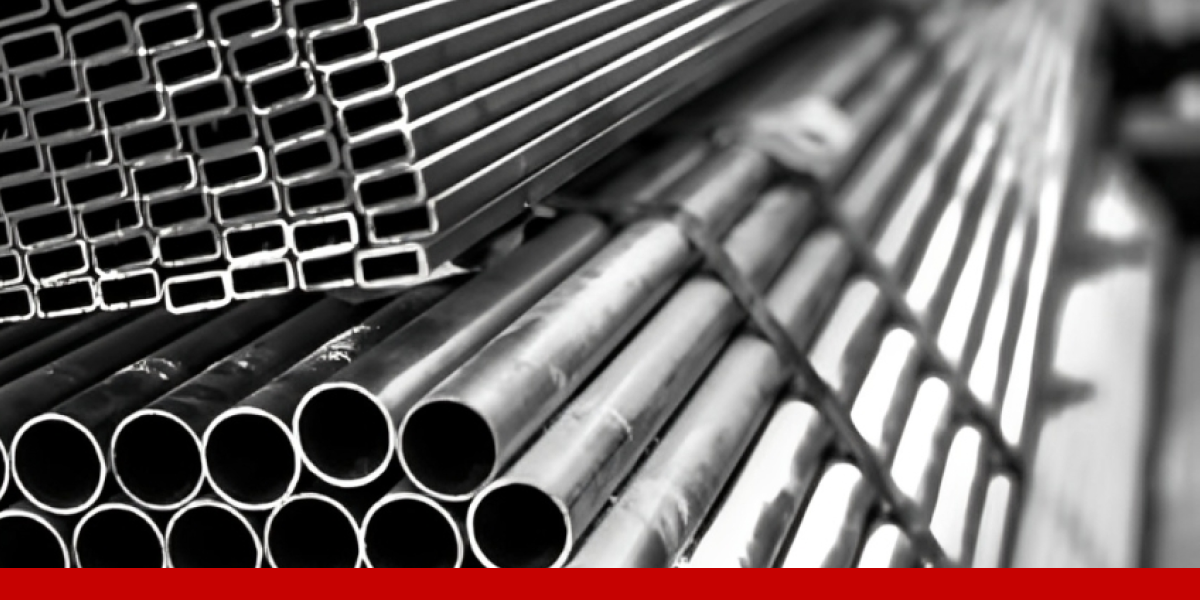

Applications of Zeron 100 Tubes
Zeron 100 tubes are widely used across various industries due to their excellent corrosion resistance and durability:
Oil and Gas:
Subsea components like heat exchangers, pressure vessels, and pipelines.
Resistance to sour gas environments ensures reliability in offshore drilling.
Chemical Processing:
- Ideal for handling non-oxidizing acids in fertilization plants.
- Used in sulfuric acid leach mining applications.
Marine Industry:
- Desalination plants rely on Zeron 100 tubes for their resistance to seawater corrosion.
- Pumps and piping systems benefit from its erosion-corrosion resistance.
Zeron 100 Chemical Composition
Element | Percentage (%) |
Chromium (Cr) | 24–26 |
Nickel (Ni) | 6–8 |
Molybdenum (Mo) | 3–4 |
Copper (Cu) | 0.5–1 |
Tungsten (W) | 0.5–1 |
Nitrogen (N) | 0.2–0.3 |
Carbon (C) | ≤0.03 |
Manganese (Mn) | ≤1.0 |
Silicon (Si) | ≤1.0 |
Sulfur (S) | ≤0.01 |
Phosphorus (P) | ≤0.03 |
Iron (Fe) | Balance |
Zeron 100 vs Duplex Stainless Steel Grades
A common comparison is between Zeron 100, known for its outstanding corrosion resistance, and Duplex Stainless Steel grades like Duplex 2507.
Comparison Table: Zeron 100 vs Duplex Stainless Steel Grades
Property | Zeron 100 | Duplex 2507 |
Chromium Content (%) | 24–26 | 24 |
Molybdenum Content (%) | 3–4 | Up to 5 |
Copper Content (%) | Up to 1 | None |
PREN Value | ≥40 | ~41 |
Corrosion Resistance | Superior in mineral acids | Excellent in seawater |
Mechanical Strength | Consistent across sizes | Reduced strength for larger cross-sections. |
While both alloys offer excellent corrosion resistance, Zeron 100’s copper addition gives it an edge in handling mineral acids like sulfuric acid.
Zeron 100 tubes are an indispensable material for industrial applications requiring high strength and superior corrosion resistance in aggressive environments. From oil rigs deep underwater to chemical plants handling harsh acids, this super duplex stainless steel delivers reliable performance while keeping costs manageable.
For custom Zeron solutions, consult a trusted Zeron 100 supplier to ensure material compatibility and quality. Explore how our expertise can enhance your project’s performance and reliability.
FAQ
Zeron100, a super duplex stainless steel, is widely used in industries such as oil and gas, chemical processing, and marine applications due to its outstanding corrosion resistance and mechanical strength.
The primary difference lies in their chemical composition; Zeron 100, a super duplex stainless steel, contains copper and tungsten, enhancing its excellent corrosion resistance to mineral acids compared to standard duplex grades like Duplex 2507.
Yes, Zeron 100 can be welded using specialized filler materials such as ER2594 or E2595-15 for optimal results.
